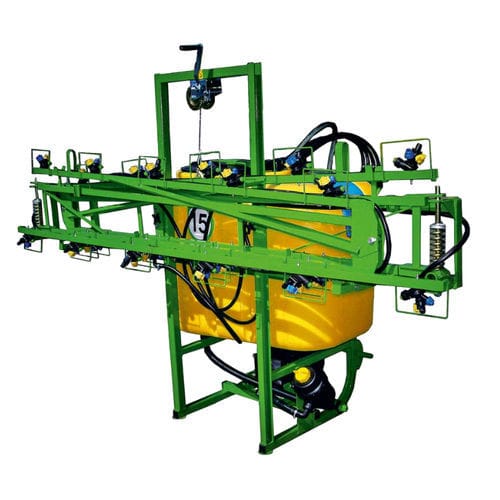

Tractor-mounted sprayer OP series

hydraulicfolding arms3-point hitch

• 3-point linkage cat. II coupling pins • Polyethylen tank • Chemical diluent in the tank inlet in the filter mesh (mixing by a liquid stream from the bottom of the tank) • Triple filtration system; inlet mesh, suction filter and discharge filter • Clean water tank for hands washing, capacity 15l • Single nozzle holders with cut-off valves • P 100 pump (Polish production) with capacity 100l/min for boom till 12m • UDOR ZETA 100 pump with capacity 100l/min for 15m boom • UDOR ZETA 140 pump with capacity 100l/min for 18m boom • Valve with manual adjustment: work-overflow; pressure regulation and closing of each section • Boom 6m, 8m, 10m, 12m or 15m width with mechanical folding and raising • Boom 18m with mechanical folding and hydraulic raising • Mechanical stabilizer of booms 15m and 18m Optional equipment • PTO shaft 210Nm/510mm • High-quality HQ tank equipped with a tank for washing the spraying circuit • Tank for washing the spraying circuit • Side chemical diluent • Triple nozzles • Air-injection nozzles IDK • ARAG control valves: constant pressure 5-sections-manual • ARAG control valves: constant pressure 5-sections + steering from the tractor cabin (ON-OFF) • ARAG control valves: constant pressure 5-sections + steering from the tractor cabin (ON-OFF, pressure adjustment) • ARAG control valves: constant pressure 5-sections electric • UDOR pumps with efficiency: 70l/min. • UDOR pumps with efficiency: 100l/min. (standard for boom 15m) • UDOR pumps with efficiency: 140l/min. (standard for boom 18m) • UDOR pumps with efficiency: 170l/min. • Boom hydraulic raising (standard for 18m boom)
