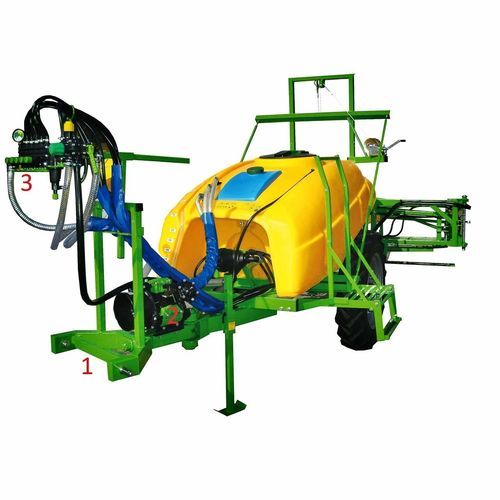

Towed sprayer OPC series

electricmanualfolding arms

Standard equipment

• Drawbar for lower hitch Ø 40mm
• Polyethylen tank
• Triple filtration system
• Clean water tank for hands washing – capacity 15l, for 2000l sprayer – 25l tank
• Chemical diluent in the tank inlet in the filtering mesh (mixing by a liquid stream from the bottom of the tank) – 35l capacity
• UDOR pump
• ARAG 5-sections manual constant pressure valve
• Single nozzle heads with cut-off valves
• Mechanical boom unfolding
• Hydraulic boom raising
• Mechanical boom stabilizer
• Supporting leg

Optional equipment

• PTO shaft 355Nm/710mm
• 3-position rotary holders (Polish production)
• ARAG 3-position rotary holders
• Drawbar with hith cross shaft cat. II
• Air-injection nozzles IDK
• Side chemical diluent (Polish origin)
• Side chemical diluent – ARAG
• Tank for cleaning of pressing system (standard for 2000 and 2500l sprayers)
• Hydraulic boom unfolding along the tank
• Hydraulic X boom unfolding (not applicable to 21m boom)
• Hydraulic boom stabilizer
• Hydraulic blocade of boom stabilizer
• One size larger wheels
• ARAG control valve – 5-sections-manual + electric control (ON-OFF)
• ARAG control valve – 5-sections-manual + electric control (ON-OFF)- pressure adjustment
• ARAG control valve – 5-sections, electric
• Hydraulic divider
• Electric steering of hydraulics
• Computer BRAVO 180S
• Computer BRAVO 180S with hydraulics
• Computer BRAVO 300S
• Computer BRAVO 300S with hydraulics
• GPS speed sensor
• Foam marker
• Galvanized frame and boom
• Tank cleaning nozzle
• Hand lance + hose
• Sectional filter – linear on each section
• Road lights
• High-quality HQ tank equipped with a tank for washing the spraying circuit

Product number

• OPC1012HQ; OPC1015HQ; OPC1015HQ; OPC1212; OPC1215; OPC1218; OPC1512HQ; OPC1515HQ; OPC1515HQ; OPC1521HQ; OPC1612; OPC1615; OPC1618; OPC1621; OPC2015; OPC2018; OPC2021; OPC2018H; OPC2021H; OPC2015HQ; OPC2018HQ; OPC2021HQ; OPC2515; OPC2518; OPC2521; OPC2515HQ; OPC2518HQ; OPC2521HQ

Technical Specifications
Code | Capacity [L] | Boom width [m] | UDOR pump [l/min] | Wheels | Weight [kg]
OPC1012HQ/OPC1015HQ/OPC1015HQ | 1000 | 12/15/18 | 140 | 7.5×20 | -/-/-
OPC1212/OPC1215/OPC1218 | 1200 | 12/15/18 | 100/140/140 | 7.5×20 | 750/760/835
OPC1512HQ/OPC1515HQ/OPC1515HQ/OPC1521HQ | 1500 | 12/15/18/21 | 140/140/170/170 | 9.5×24 | -/-/-/-
OPC1612/OPC1615/OPC1618/OPC1621 | 1600 | 12/15/18/21 | 140/140/170/170 | 9.5×24 | 790/800/875/925
OPC2015/OPC2018/OPC2021 | 2000 | 15/18/21 | 170 | 9.5×32 | 855/930/1050
OPC2018H/OPC2021H | 2000 | 18/21 | 170 | 9.5×32 | -/-
OPC2015HQ/OPC2018HQ/OPC2021HQ | 2000 | 15/18/21 | 170 | 9.5×32 | -/-/-
OPC2515/OPC2518/OPC2521 | 2500 | 15/18/21 | 170/170/200 | 9.5×32 | 1600/1650/1700
OPC2515HQ/OPC2518HQ/OPC2521HQ | 2500 | 15/18/21 | 170/170/200 | 9.5×32 | -/-/-
*HQ – High quality tank

Characteristics / Technical Specifications

• Mechanical boom unfolding
• Hydraulic boom raising
• Polyethylene tank (various capacities: 1000L, 1200L, 1500L, 1600L, 2000L, 2500L)
• UDOR pump (various flow rates: 100, 140, 170, 200 l/min)
• Manual and electric ARAG control valves
• Triple filtration system
• Optional GPS, computer control, foam marker, galvanized frame
• Various wheel sizes (7.5×20, 9.5×24, 9.5×32)
• Mechanical or hydraulic boom stabilizer
• Supporting leg
