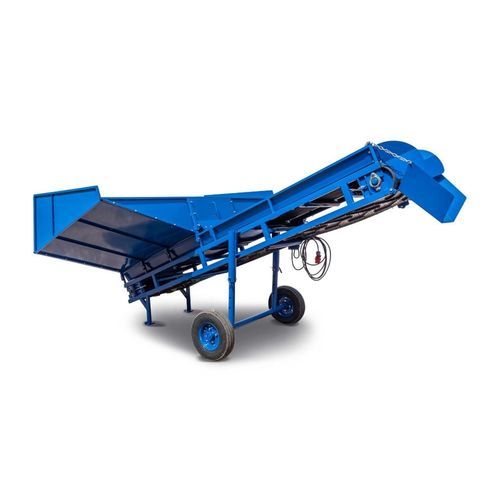

Belt conveyor 4341

Standard Equipment

• Charging hopper – Capacity 2m³, Width 2.8m, Height 2.3m
• Conveyors - Width 0.44m, Max length 4m
• Dump height 0.8m – 1.8m
• Adjustable belt speed (1.5 – 5.5 m/min)
• Electric engine 0.75kW, 1400 rpm/min, Supply 400V/50Hz

Product Number

• 4341; 4342

Technical Specifications
Ref.No. | Weight [kg] | Length/Width/Height [m] | Basket volume [m³] | Separator
4341 | 500 | 4/2.85/2.35 | 2.0 | –
4342 | 500 | 4/2.85/2.35 | 2.0 | +

Characteristics / Technical Specifications

• Charging hopper capacity: 2 m³
• Charging hopper width: 2.8 m
• Charging hopper height: 2.3 m
• Conveyor width: 0.44 m
• Conveyor max length: 4 m
• Dump height: 0.8 m – 1.8 m
• Adjustable belt speed: 1.5 – 5.5 m/min
• Electric engine: 0.75 kW, 1400 rpm/min
• Power supply: 400V/50Hz
• Weight: 500 kg
• Dimensions (L/W/H): 4/2.85/2.35 m
• Basket volume: 2.0 m³
• Separator: available (+) or not (–) depending on model
• Product numbers: 4341 (without separator), 4342 (with separator)
