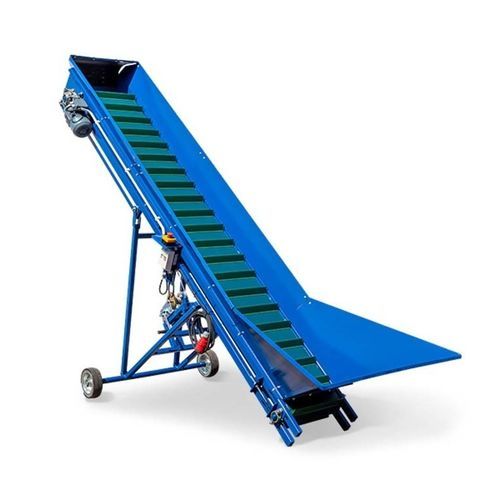

Vegetable conveyor 4310beltelectricvertical
Add to favorites
Compare this product
Characteristics
- Applications
- for vegetables
- Technology
- belt
- Other characteristic
- electric, vertical
- Bulk throughput
5 t/h
(3 lb/s)
Description
Standard equipment
Product number
Technical Specifications
Ref.No. | L/W/H [m] | Working width of the belt [mm] | Width of the filling hopper [mm] | Height of the filling hopper [mm] | Performance [t/h] | Engine power [kW] | Engine speed control | Weight [kg]
4310 | 1/0.8/0.8 | 300 | 540 | 340 | ok. 5 | 0.37 | – | 60
4310W | 1/0.8/0.8 | 300 | 540 | 340 | ok. 5 | 0.37 | variator / 400V | 62
4310F | 1/0.8/0.8 | 300 | 540 | 340 | ok. 5 | 0.37 | inverter / 230V | 62
4311 | 2/0.8/0.9-1.5 | 300 | 540 | 400-450 | ok. 5 | 0.55 | – | 91
4311W | 2/0.8/0.9-1.5 | 300 | 540 | 400-450 | ok. 5 | 0.55 | variator / 400V | 93
4311F | 2/0.8/0.9-1.5 | 300 | 540 | 400-450 | ok. 5 | 0.55 | inverter / 230V | 93
4312 | 3/1.1/1.5-2.1 | 400 | 1050 | 500-650 | ok. 5 | 0.75 | – | 150
4312W | 3/1.1/1.5-2.1 | 400 | 1050 | 500-650 | ok. 5 | 0.75 | variator / 400V | 152
4312F | 3/1.1/1.5-2.1 | 400 | 1050 | 500-650 | ok. 5 | 0.75 | inverter / 230V | 152
4313 | 4/1.2/1.75-2.8 | 400 | 1100 | 590-730 | ok. 5 | 0.75 | – | 230
4313F | 4/1.2/1.75-2.8 | 400 | 1100 | 590-730 | ok. 5 | 0.75 | inverter / 230V | 232
4314 | 6/1.2/1.9-3.3 | 400 | 1200 | 870 | ok. 5 | 1.1 | – | 367
4314W | 6/1.2/1.9-3.3 | 400 | 1200 | 870 | ok. 5 | 1.1 | variator / 400V | 369
4315 | 6/1.2/1.9-3.3 | 600 | 1200 | 870 | ok. 5 | 1.1 | – | 367
4315F | 6/1.2/1.9-3.3 | 600 | 1200 | 870 | ok. 5 | 1.1 | inverter / 230V | 369
Characteristics / Technical Specifications
- Horizontal and vertical transport of vegetables
- Electric drive
- Work indoors and outdoors
Product number
- 4310; 4310W; 4310F; 4311; 4311W; 4311F; 4312; 4312W; 4312F; 4313; 4313F; 4314; 4314W; 4315; 4315F
Technical Specifications
Ref.No. | L/W/H [m] | Working width of the belt [mm] | Width of the filling hopper [mm] | Height of the filling hopper [mm] | Performance [t/h] | Engine power [kW] | Engine speed control | Weight [kg]
4310 | 1/0.8/0.8 | 300 | 540 | 340 | ok. 5 | 0.37 | – | 60
4310W | 1/0.8/0.8 | 300 | 540 | 340 | ok. 5 | 0.37 | variator / 400V | 62
4310F | 1/0.8/0.8 | 300 | 540 | 340 | ok. 5 | 0.37 | inverter / 230V | 62
4311 | 2/0.8/0.9-1.5 | 300 | 540 | 400-450 | ok. 5 | 0.55 | – | 91
4311W | 2/0.8/0.9-1.5 | 300 | 540 | 400-450 | ok. 5 | 0.55 | variator / 400V | 93
4311F | 2/0.8/0.9-1.5 | 300 | 540 | 400-450 | ok. 5 | 0.55 | inverter / 230V | 93
4312 | 3/1.1/1.5-2.1 | 400 | 1050 | 500-650 | ok. 5 | 0.75 | – | 150
4312W | 3/1.1/1.5-2.1 | 400 | 1050 | 500-650 | ok. 5 | 0.75 | variator / 400V | 152
4312F | 3/1.1/1.5-2.1 | 400 | 1050 | 500-650 | ok. 5 | 0.75 | inverter / 230V | 152
4313 | 4/1.2/1.75-2.8 | 400 | 1100 | 590-730 | ok. 5 | 0.75 | – | 230
4313F | 4/1.2/1.75-2.8 | 400 | 1100 | 590-730 | ok. 5 | 0.75 | inverter / 230V | 232
4314 | 6/1.2/1.9-3.3 | 400 | 1200 | 870 | ok. 5 | 1.1 | – | 367
4314W | 6/1.2/1.9-3.3 | 400 | 1200 | 870 | ok. 5 | 1.1 | variator / 400V | 369
4315 | 6/1.2/1.9-3.3 | 600 | 1200 | 870 | ok. 5 | 1.1 | – | 367
4315F | 6/1.2/1.9-3.3 | 600 | 1200 | 870 | ok. 5 | 1.1 | inverter / 230V | 369
Characteristics / Technical Specifications
- Horizontal and vertical transport of vegetables
- Electric drive
- Work indoors and outdoors
- Multiple product numbers/models: 4310, 4310W, 4310F, 4311, 4311W, 4311F, 4312, 4312W, 4312F, 4313, 4313F, 4314, 4314W, 4315, 4315F
- Various sizes and engine powers available
- Performance: approx. 5 t/h
- Engine power: from 0.37 kW to 1.1 kW
- Engine speed control options: variator (400V), inverter (230V), or none
- Weight: from 60 kg to 369 kg depending on model
