Tipping mounted transport box JDM

Product Overview

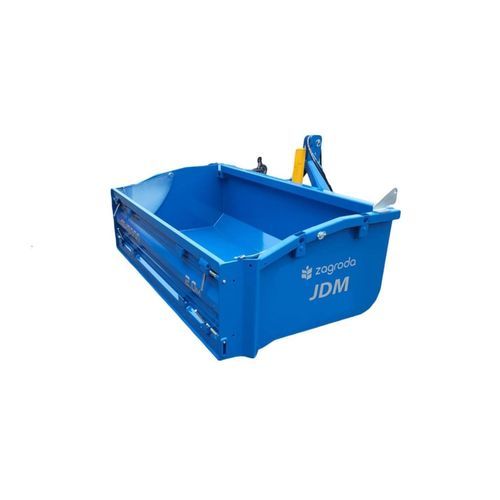

The Mounted transport box JDM with hydraulic tipping is a robust and versatile transport solution designed for agricultural and industrial applications. It features a hydraulic tipping mechanism for efficient unloading and is built to handle heavy loads.

Standard Equipment

• Three-point hitch cat. II
• Telescopic cylinder
• Loading capacity: 3,000 kg
• HARDOX scraper bar
• Powder coated finish

Optional Equipment

• EURO mount with fastening elements
• Swivel plates
• Stanchions (4 pieces)

Product Numbers

• 2483
• 2484
• 2485

Technical Specifications
Code    Width [m]    Depth [m]    Height [m]    Capacity [kg]    Weight [kg]
2483    1.8    1.05    0.47 / 0.60    3000    410
2484    2.0    1.05    0.47 / 0.60    3000    430
2485    2.2    1.05    0.47 / 0.60    3000    450

Key Features / Technical Specifications

• Hydraulic tipping mechanism
• Three-point hitch category II compatibility
• Telescopic hydraulic cylinder
• Maximum loading capacity: 3,000 kg
• HARDOX scraper bar for durability
• Powder coated for corrosion resistance
• Available in widths: 1.8 m, 2.0 m, 2.2 m
• Depth: 1.05 m
• Height: 0.47 / 0.60 m
• Weights: 410 kg, 430 kg, 450 kg (depending on model)
• Optional EURO mount, swivel plates, and stanchions
