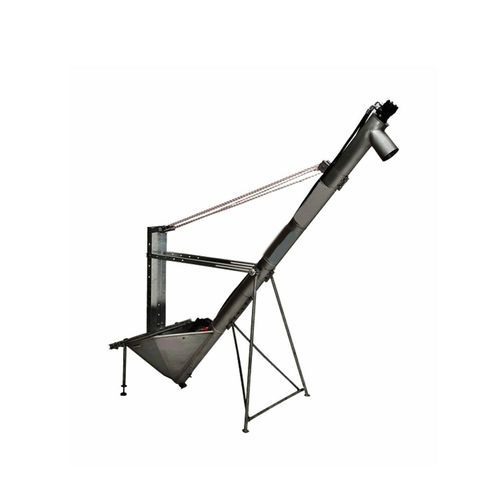

Screw conveyor 3301

hydraulicflexible

Product Overview
Screw conveyors with hydraulic drive are robust and efficient solutions designed for the transportation of bulk materials. These conveyors are equipped with a hydraulic drive system, making them suitable for demanding agricultural and industrial applications.

Standard equipment

• Hydraulic drive
• The position of the discharge opening is regulated by a rope mechanism
• Capacity up to 25 t / h
• Pipe diameter 140mm
• Control from the cab – version without three-way valve
• Hopper with grid
• Galvanized

Optional equipment

• Three-way valve – control from the conveyor
• Stainless steel version
• Flexible discharge

Technical Specifications
Ref.No. | Length [m] | Weight [kg]
3301 | 3.0 | 91
3305 | 4.0 | 102

Product number
3301; 3305

Key Features / Technical Specifications

• Hydraulic drive system
• Discharge opening position regulated by rope mechanism
• Maximum capacity: 25 t/h
• Pipe diameter: 140 mm
• Cab control (without three-way valve as standard)
• Hopper with grid included
• Galvanized construction for durability
• Optional three-way valve for conveyor control
• Optional stainless steel version
• Optional flexible discharge
• Available lengths: 3.0 m (Ref. 3301), 4.0 m (Ref. 3305)
• Weights: 91 kg (3.0 m), 102 kg (4.0 m)
