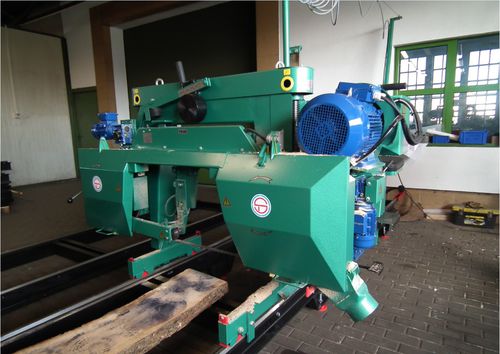

Band sawmill TTM-800
horizontalelectric

band sawmill
band sawmill
band sawmill
Add to favorites
Compare this product


Characteristics

Type
band
Form
horizontal
Other characteristics
electric

Description

The band saw with a movable cutting unit is designed for longitudinal sawing of logs and logs. The track along which the cutting unit moves is equipped with log holders. Loading the log on the saw is easier because the log is processed at a height of 0.1 m above ground level. Vertical feed (up-down) is driven by an electric motor. The horizontal (working) feed is also driven by an electric motor. Technical data Saw log thickness: max 850 mm, without turning 750 mm Workpiece length:standard version: max. 10 m Track length: - 12 m (2 x 6,0 m) Installed power: - main drive 7,5 kW / 400V - horizontal feed drive 1.10 kW - 1.10 kW vertical feed drive - 0.18 kW roller feed drive The speed of the horizontal feed, smoothly mechanically adjustable: - forward 1.5 - 20 m / min - backwards 5.0 - 40 m / min Vertical up-down feed speed: 20 mm/s Cutting band parameters: - length 4.14 or 4.01 m - width 32–35 mm - thickness 0.8–1.0 mm - tooth pitch 22 mm Dimensions of the cutting unit: 2,05 x 1,65 x h. 1,35 m Total mass - 1650 kg including: - 800 kg cutting unit - track (2 x 6.0m): 580 kg - track accessories: 270 kg
