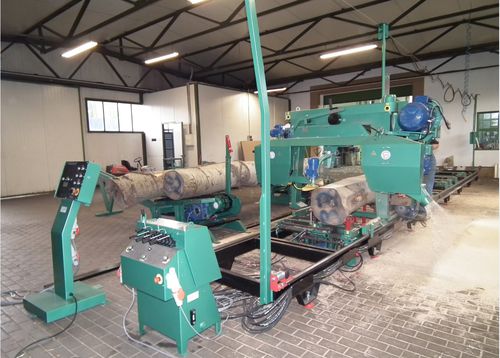

Band sawmill TTM-1100
horizontalelectric

band sawmill
band sawmill
band sawmill
band sawmill
band sawmill
band sawmill
band sawmill
Add to favorites
Compare this product


Characteristics

Type
band
Form
horizontal
Other characteristics
electric

Description

The band saw with a movable cutting unit is designed for longitudinal sawing of logs and logs. The track along which the cutting unit moves is equipped with log holders. Loading the log on the saw is easier because the log is processed at a height of 0.1 m above ground level. Vertical feed (up-down) is driven by an electric motor. The horizontal (working) feed is also driven by an electric motor. Technical data Thickness of the processed log:max 1100 mm, without turning 1000 mm Length of the processed log (standard version):max 10 m Track length:12 m Installed power: - main drive 15 or 11 kW / 400V - horizontal feed drive 1.10 kW - vertical feed drive 1.10 kW - 0.18 kW roller feed drive Horizontal feed speed - speed regulated smoothly, mechanically: - forward 1.5 - 20 m / min - backwards 5.0 - 40 m / min Vertical up-down feed speed:20 mm/s Cutting band parameters: - length 4.80 - 4.90 m - width 35 - 38 mm - thickness 1.1 - 1.2 mm - tooth pitch 22 mm Dimensions of the cutting unit: - 2,40 x 1,70 x wys. 1,70 m Total mass:2150 kg including: - cutting unit 950 kg - track (2 x 6.0m): 900 kg - track accessories: 300 kg

VIDEO

Catalogs

TTM-1100
TTM-1100
1 Pages
