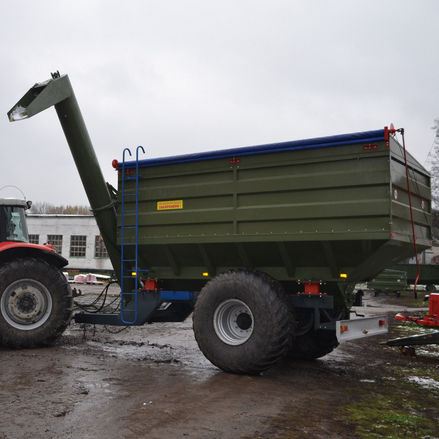

Chaser bin PBN-20

single-axlegrainwith pneumatic braking

Reloading trailer special constructed for transportation of grain from the combine and reloading it into other machines or containers. Also this machine can provide fast loading of seeders and loading BigBags. Main advantages: 1. Increasing of the combine threshing by more then 30% - harvester does not stop and unloads grain while moving. 2. Working on the wet field (Big tires with low pressure can easily goes through light swamps and mud). 3. Reducing of seeding machine idle time under loading (the productivity of seeding machines increases up to 30% per shift). 4. Weighing of grain on the field with the check issue or sending GPS data to an operator computer. Grain reloading trailer consist of one of the best EU parts, for example: Italian suspension (ADR firm), Polish discs (Pronar) with BKT, Mitas tires. All reducers and cardan shafts are Italian (Bondioli and Pavesi). This model is also available on tandem, double-axle (ADR Italy) Technical characteristics of reloading trailer 1.Single-axle sprung (ADR Italy) size 150x2300 tubular 2.Tires 650/65-30,5 (load 9,08t. while30km/h.) 3.Pneumatic braking system (possible: hydraulic,mixed) 4.Body V-20m3 vehicle capacity 16t. 5. Auger ©420 (520) mm. (productivity 3 or 6 t/min., unloading height 4,3m.) 6.Replaceable trailed ring ©40, 50, 90 mm. 7.Hydraulic trailer hitch brace 8. Driving reducer 52100 (produced by Bondioli and Pavesi, Italy) 9. Auger lip 10.Service ladder 11. Horizontal auger cleaning mechanism (three windows)
