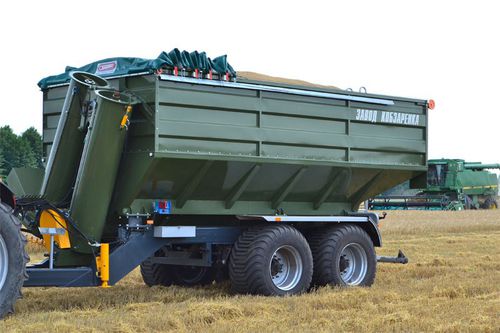

Chaser bin PBN-30
2-axlegrainwith pneumatic braking

chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
Add to favorites
Compare this product


Characteristics

Construction
chaser bin
Number of axles
2-axle
Application
grain
Brake system
with pneumatic braking
Empty weight

28,200 kg, 29,700 kg
(62,170.4 lb, 65,477.3 lb)

Recommended power

Max.: 220 ch
(220 hp)

Min.: 180 ch
(180 hp)

Load volume

28 m³, 30 m³
(988.811 ft³, 1,059.44 ft³)

Loading case lenght

8,500 mm
(334.6 in)

Loading case width

2,460 mm, 2,910 mm
(96.9 in, 114.6 in)

Loading case hight

3,480 mm, 3,550 mm
(137 in, 139.8 in)

Description

Reloading trailer special constructed for transportation of grain from the combine and reloading it into other machines or containers. Also this machine can provide fast loading of seeders and loading BigBags. Main advantages: 1. Increasing of the combine threshing by more then 30% - harvester does not stop and unloads grain while moving. 2. Working on the wet field (Big tires with low pressure can easily goes through light swamps and mud). 3. Reducing of seeding machine idle time under loading (the productivity of seeding machines increases up to 30% per shift). 4. Weighing of grain on the field with the check issue or sending GPS data to an operator computer. Grain reloading trailer consist of one of the best EU parts, for example: Italian suspension (ADR firm), Polish discs (Pronar) with BKT, Mitas tires. All reducers and cardan shafts are Italian (Bondioli and Pavesi). This model is also available on tandem, double-axle (ADR Italy)
