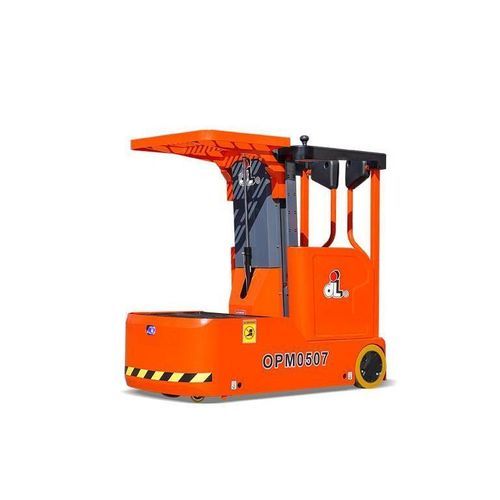

Self-propelled aerial platform OPM0507
electric

Self-propelled aerial platform - OPM0507 - Zhejiang Dingli Machinery Co,Ltd - electric
Self-propelled aerial platform - OPM0507 - Zhejiang Dingli Machinery Co,Ltd - electric
Add to favorites
Compare this product

Characteristics

Type
self-propelled
Other characteristics
electric
Height

3 m, 5 m
(9'10" , 16'04" )

Description

Product
  • Model: OPM0507
  • Type: Oil-free & All-electric Order Picker
  • Designed for indoor order picking with a compact footprint


Dimensions
  • Max. Working Height: 4.99m / 16ft 4in
  • Max. Platform Height: 2.99m / 9ft 10in
  • Overall Length: 1.44m / 4ft 9in
  • Overall Width: 0.80m / 2ft 7in
  • Overall Height: 1.40m / 4ft 8in
  • Ground Clearance: 0.04m / 2in
  • Wheelbase: 1.10m / 3ft 7in
  • Turning Radius (Inside/Outside): —
  • Tyres (Front): Φ210×70mm
  • Tyres (Back): Φ250×100mm


Performance
  • S.W.L. Of Platform (For Person): 136kg / 300lb
  • S.W.L. Of Pallet (For Goods-Up): 90kg / 198lb
  • S.W.L. Of Pallet (For Goods-Down): 110kg / 243lb
  • Max. Occupants (Indoor/Outdoor): —
  • Forward Speed (Stowed): ≯6.50km/h / ≯4.03mph
  • Back Speed (Stowed): —
  • Travel Speed (Raised): —
  • Up/Down Speed: 11/15sec
  • Gradeability: 5%/8%
  • Max. Working Slope (X/Y): —


Weight
  • Overall Weight: 800kg / 1764lb


Power
  • Lead-Acid Maintenance-Free Battery: 24V/120Ah
  • Charger: 24V/15A
  • Driving Motor: 0.75kW
  • Lifting Motor: 2.2kW


Technical specifications
  • Model: OPM0507
  • Type: Oil-free & All-electric Order Picker
  • Max. Working Height: 4.99m / 16ft 4in
  • Max. Platform Height: 2.99m / 9ft 10in
  • Overall Length: 1.44m / 4ft 9in
  • Overall Width: 0.80m / 2ft 7in
  • Overall Height: 1.40m / 4ft 8in
  • Ground Clearance: 0.04m / 2in
  • Wheelbase: 1.10m / 3ft 7in
  • Turning Radius (Inside/Outside): —
  • Tyres Front: Φ210×70mm
  • Tyres Back: Φ250×100mm
  • S.W.L. Platform (Person): 136kg / 300lb
  • S.W.L. Pallet (Goods-Up): 90kg / 198lb
  • S.W.L. Pallet (Goods-Down): 110kg / 243lb
  • Forward Speed (Stowed): ≯6.50km/h / ≯4.03mph
  • Up/Down Speed: 11/15sec
  • Gradeability: 5%/8%
  • Overall Weight: 800kg / 1764lb
  • Battery: 24V/120Ah
  • Charger: 24V/15A
  • Driving Motor: 0.75kW
  • Lifting Motor: 2.2kW
