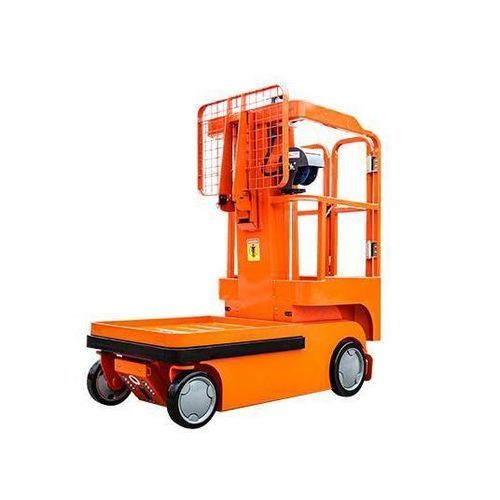

Self-propelled aerial platform OPT0507

electric4 wheel drive

Overview

• "oil free" design, energy saving and environmental protection
• Maximum speed 4.8km/h, high efficiency
• Small size, minimum turning radius 0m/1.3m (inside/outside wheel), good maneuverability
• Multi-stage loading platform is configured to meet the needs of material transportation

Product Parameter
Dimension
Max. Working Height: 4.99m / 16ft 4in
Max. Platform Height: 2.99m / 9ft 10in
Overall Length: 1.59m / 5ft 3in
Overall Width: 0.75m / 2ft 6in
Overall Height: 1.59m / 5ft 3in
Ground Clearance: 0.04m / 2in
Wheelbase: 1.11m / 3ft 8in
Turning Radius (Inside/Outside): 0m / 1.30m (0in / 4ft 3in)
Tyres (Front): Φ254×63.5mm
Tyres (Back): Φ305×63.5mm

Performance
S.W.L Of Platform (For Person): 135kg / 298lb
S.W.L Of Pallet (For Goods-Up): 90kg / 198lb
S.W.L Of Pallet (For Goods-Down): 115kg / 253lb
Max. Occupants (Indoor/Outdoor): 1 / 0
Forward Speed (Stowed): ≥4.80km/h / ≥2.98mph
Back Speed (Stowed): ≥3.20km/h / ≥1.99mph
Travel Speed (Raised): ≥1.30km/h / ≥0.81mph
Up/Down Speed: 18 / 18 sec
Gradeability: 0.15
Max. Working Slope (X/Y): 0°

Weight
Overall Weight: 660kg / 1455lb

Power
Lead-Acid Maintenance-Free Battery: 24V / 115Ah
Charger: 24V / 15A
Driving Motor: 2 × 15VAC / 0.68kW
Lifting Motor: 24VDC / 1.4kW

Support

• Service Center
• Guarantee
• Manual
• BIM Manual

Technical specifications

• Model: OPT0507
• Type: Oil-free & All-electric Order Picker
• Max. Working Height: 4.99m / 16ft 4in
• Max. Platform Height: 2.99m / 9ft 10in
• Overall Dimensions (L×W×H): 1.59m × 0.75m × 1.59m (5ft 3in × 2ft 6in × 5ft 3in)
• Ground Clearance: 0.04m / 2in
• Wheelbase: 1.11m / 3ft 8in
• Turning Radius (Inside/Outside): 0m / 1.30m
• Tyres Front/Back: Φ254×63.5mm / Φ305×63.5mm
• S.W.L Platform (person): 135kg / 298lb
• S.W.L Pallet (goods up/down): 90kg / 115kg
• Max Occupants Indoor/Outdoor: 1 / 0
• Speeds (Forward/Stowed): ≥4.80km/h; (Back/Stowed): ≥3.20km/h; (Raised Travel): ≥1.30km/h
• Up/Down Speed: 18 / 18 sec
• Gradeability: 0.15
• Overall Weight: 660kg / 1455lb
• Battery: 24V/115Ah (lead-acid maintenance-free)
• Charger: 24V/15A
• Driving Motor: 2×15VAC / 0.68kW
• Lifting Motor: 24VDC / 1.4kW
