Farm building fan ZAvblue2

for air circulationcentrifugal

Overview
ZAvblue2 is a compact centrifugal fan series designed for ventilation and cooling systems requiring high system efficiency and low noise. The combination of ECblue motor technology and a biomimetically optimized impeller with enlarged air inlet yields system efficiencies above 70% and a reduced sound level of up to 3 dB versus the previous generation, enabling higher volume flow with lower energy consumption.

ZApilotXL performance module
ZAvblue2 is available with the ZApilotXL performance module. It shares mounting dimensions with the GR module for drop-in replacement without major modifications. With ZApilotXL, overall efficiency can increase by up to 7%, making the combination suitable for volume-flow-intensive installations.

Features

• System efficiency up to 70.1% (up to 74.4% with ZApilotXL)
• ECblue external-rotor motor technology with integrated controller
• Biomimetically optimized impeller and enlarged air inlet for volume-flow-oriented outflow
• Very compact design for confined installation spaces
• Lower energy consumption with increased delivery rate
• Acoustic improvement up to –3 dB compared to previous model

Product Specification

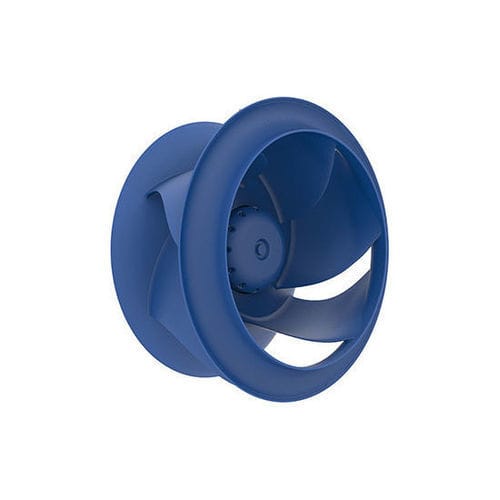

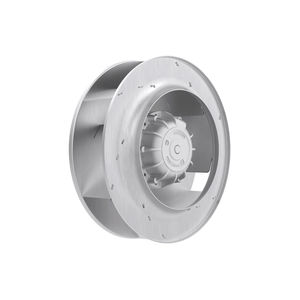

Free-running impeller, latest ZAvblue2 generation, with 6 backward-curved 3D-profiled blades. Impeller material: high-performance composite. Available with optional inlet nozzle in galvanized sheet steel. Impeller diameters: 250, 280, 315, 355, 400, 450, 500, 560, 630 mm. Free-blowing volume flows up to approx. 23,000 m³/h; maximum static pressure increase up to 1,600 Pa. Compact installation possible; ZApilotXL enhances performance for volume-intensive applications.

Properties & Special Features
The 3D-profiled blades, rotating diffusor and diagonal outflow combine to provide high volume flows, elevated impeller efficiency and reduced sound levels. The design is suited to high-flow applications in confined installation spaces.

Motor Concepts

• External rotor motors: ECblue technology with integrated controller matched to the fan

Technical Specifications

• Model / series: ZAvblue2
• Impeller type: free-running impeller with 6 backward-curved, 3D-profiled blades
• Impeller material: high-performance composite
• Inlet nozzle option: galvanized sheet steel
• Available impeller sizes: 250 mm, 280 mm, 315 mm, 355 mm, 400 mm, 450 mm, 500 mm, 560 mm, 630 mm
• Volume flow (free blowing): up to approx. 23,000 m³/h
• Maximum static pressure increase: up to 1,600 Pa
• System efficiency: up to 70.1% (up to 74.4% with ZApilotXL)
• Efficiency gain with ZApilotXL: up to 7%
• Acoustic improvement: up to –3 dB compared to previous model
• Design highlights: optimized air inlet, rotating diffusor, diagonal outflow, volume-flow-oriented outflow behavior
• Installation: extremely compact design for confined spaces; identical mounting dimensions to GR module for drop-in replacement (ZApilotXL compatible)
• Motor technology: ECblue external rotor motors with integrated controller
• Typical applications: ventilation and cooling systems, noise-sensitive installations, heat pumps, residential ventilation, data centres, device cooling, compressors, packaging and production machines, clean-room workstations
