Air inlet for livestock buildings ZAplus+

for ventilationcircular

Overview

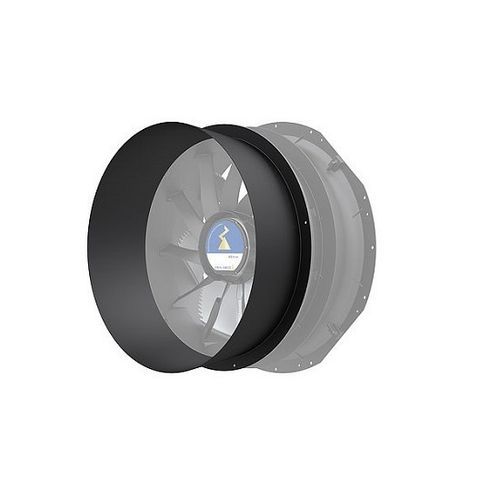

The ZAplus+ diffuser increases airflow in ZAplus fan systems at low pressure ranges, reducing energy demand and improving acoustic directivity. It is designed for retrofit installation on existing ZAplus housings to extend system performance and meet efficiency requirements.

Product specification
The ZAplus+ diffuser modifies the flow behaviour in the lower pressure range to provide additional airflow while lowering required input power. It is mounted on top of the existing ZAplus housing and can be retrofitted on site with minimal downtime. The altered flow pattern also improves acoustic directivity, contributing to lower perceived noise levels.

Properties & special features

• Conforms to ZIEHL-ABEGG quality standards
• Easy to install and quick to retrofit
• Lower operating costs through energy optimisation
• Reduction of noise levels
• Acoustic directivity

The additional airflow is available for ZAplus sizes 500, 630, 800 and 910 mm.

Technical specifications

• Product: ZAplus+ diffuser for ZAplus fan systems
• Function: Increases airflow in the lower pressure range
• Benefit: Optimised flow behaviour reduces energy consumption and operating costs
• Acoustics: Improved acoustic directivity and reduced noise level
• Installation: Mounting diffuser can be retrofitted quickly and easily on site; built on top of existing ZAplus housing
• Available for ZAplus sizes: 500 mm, 630 mm, 800 mm, 910 mm
