Farm building fan FPowlet

for air circulationaxial

Description
The FPowlet axial fan is designed for integration into heat pumps and delivers low acoustic emissions thanks to a biomimetic blade concept. The blade combines a serrated trailing edge, a rippled leading edge and an owl-wing-inspired winglet, forming a blade geometry unique to this series.

Product specification
The FPowlet axial fan merges blades developed for refrigeration applications with an explicit acoustic focus for heat pump use. The rotor is paired with ECblue external-rotor motors featuring integrated controllers, enabling 100% speed control to set the optimal operating point. Two-level dynamic balancing provides smooth operation and extended service life, positioning the FPowlet for use in high-efficiency heat pump systems.

Properties & special features

• Optimised for use and installation in heat pumps
• Low acoustic emissions with reduced tonality
• High flexibility via fully speed-controlled airflow
• Smooth operation and long durability through two-level dynamic balancing
• Multiple certifications (VDE, UL, CCC, CE)
• Principally compatible with A3 refrigerants (including R290)

Motor concepts

• External-rotor motors: EC technology — ECblue with integrated controller matched to the fan

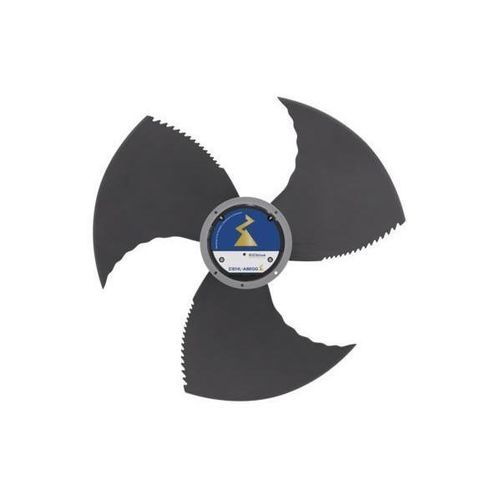

Representative product images (captions on page)

• FPowlet size 063 with EC motor technology: ECblue with integrated controller
• FPowlet size 050 with EC motor technology: ECblue with integrated controller

Technical specifications

• Series name: FPowlet
• Optimised application: heat pumps
• Motor technology: ECblue (integrated controller), fully speed-controlled
• Blade features: serrated trailing edge, rippled leading edge, winglet (biomimetic design)
• Acoustics: designed for low acoustic values and reduced tonality
• Dynamic balancing: 2-level dynamic balancing for smooth operation and durability
• Certifications: VDE, UL, CCC, CE
• Safety / refrigerant compatibility: Use with A3 refrigerants (including R290) possible in principle
• Series model count on page: 22 models shown
• Size range shown in model filter: approx. 450 mm – 630 mm
• Air flow range shown in model filter: approx. 4,386 m³/h – 8,746 m³/h
• Pressure range shown in model filter: approx. 100 Pa – 120 Pa
