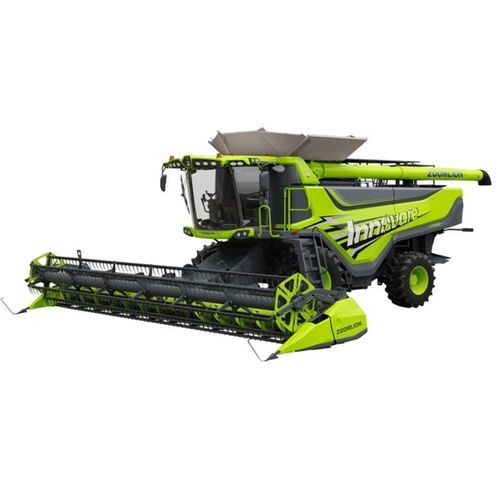

Hybrid combine harvester DH7-6000

cornfor grains

Overview
The world’s first intelligent high-capacity hybrid combine harvester designed for intensive large-scale farming and multi-crop harvesting. Compatible with 7.6–9.2 m grain headers and 8–12-row corn headers; harvesting capacity 4–6 ha/h.

Advantages

• Reliable and durable: Transmission components such as chains and belts reduced by 70% compared to fuel-powered models, increasing mean time between failures (MTBF) by 50% and lowering maintenance points.
• Efficient operation: Electronic control monitors and coordinates operating parameters for smooth adaptive operation, improving operating efficiency by 20%.
• Precise control: High-performance electronic control system maintains stable rotational speed without drop, enhancing operational quality by 10%.
• Powerful performance: Range-extended hybrid power system with dual-motor four-wheel drive delivers continuous high-intensity power.
• Energy-saving and eco-friendly: Hybrid system reduces energy consumption by over 30%.

Machine (selected parameters)
Parameter — Unit — Value
Throughput capacity — kg/s — 20
Overall dimensions (without header) — mm — 10706×4004×4038
Operating weight (excluding header) — kg — 20785
Min. ground clearance — mm — 460

Engine
Parameter — Unit — Value
Model — — YC-K11480
Number of cylinders — cylinders — 6
Fuel tank capacity — L — 760

Threshing & Cleaning System
Parameter — Unit — Value
Structural design — — 3-stage tangential separation + twin axial rotors
Cylinder (diameter × length) — mm — Φ600×1440
Cylinder speed — r/min — 330–930
Total separation area — m² — 3.7
Cleaning system type — — Air & sieve cleaning system

Grain Tank
Parameter — Unit — Value
Grain tank capacity — m3 — 11.5
Unloading rate — L/s — 110

Chassis System
Parameter — Unit — Value
Transmission type — — Electro-hydraulic shift + HST
Tires (front/rear) — — IF600/70R28 (front); 900/60 R32 (rear)
Drive type — — 4WD

Header
Parameter — Unit — Value
Rigid grain header — Dimensions (m) — 8030×2300×1550
Rigid grain header — Weight (kg) — 2350
Soybean flex header — Dimensions (m) — 9800×2820×1600
Soybean flex header — Weight (kg) — 2850
Corn header — Rows/Dimensions — 12 rows/6300×3190×1210; 12 rows/8150×3190×1210; 12 rows/8750×3190×1210
Corn header — Weight (kg) — 3400/4600
Multi-crop header — Dimensions — /
Multi-crop header — Weight (kg) — /

Technical specifications

• Model: DH7-6000
• Brand: Zoomlion
• Throughput capacity: 20 kg/s
• Overall dimensions (without header): 10706×4004×4038 mm
• Operating weight (excluding header): 20785 kg
• Min. ground clearance: 460 mm
• Engine model: YC-K11480
• Engine cylinders: 6
• Fuel tank capacity: 760 L
• Threshing design: 3-stage tangential separation + twin axial rotors
• Cylinder size: Φ600×1440 mm
• Cylinder speed: 330–930 r/min
• Total separation area: 3.7 m²
• Cleaning system: Air & sieve cleaning system
• Grain tank capacity: 11.5 m³
• Unloading rate: 110 L/s
• Transmission: Electro-hydraulic shift + HST
• Tires: IF600/70R28 (front); 900/60 R32 (rear)
• Drive: 4WD
• Compatible headers: 7.6–9.2 m grain headers; 8–12-row corn headers
• Harvesting capacity: 4–6 ha/h
