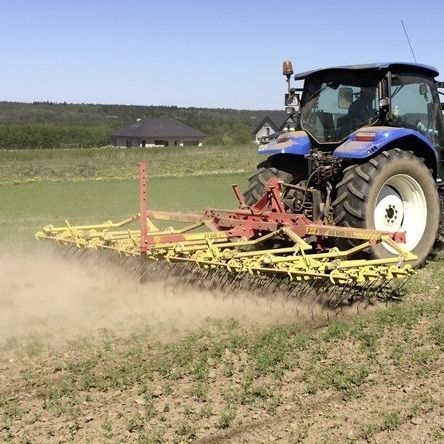

Spring tine harrow AS 600 M1
tinefolding

spring tine harrow
spring tine harrow
spring tine harrow
spring tine harrow
spring tine harrow
spring tine harrow
spring tine harrow
spring tine harrow
Add to favorites
Compare this product


Characteristics

Type
tine, spring tine
Other characteristic
folding
Working width

6 m
(19'08" )

Description

The 7 mm tines take care of the crucial work. They are arranged in a tine spacing of 31.25 mm and in 6 rows. The main focus is on combating unwanted weeds. Functional Principle The tines penetrate the soil while harrowing to a maximum depth of 2-3 cm to break up and crumble the upper soil crust. This ensures better soil aeration and the capillarity is interrupted. However, the primary focus is on the control of unwanted weeds. 90 % of the weed germs are decimated naturally by pulling them out of the soil and depositing them to wither. EXACT •Uniform work pattern •Independent ground adaptation of each individual section array to ground contours •Larger bend angle of the tines for excellent harrow result •Constant ground adaptation of the harrow sections through chain suspension •Uniform application of pressure by the forks on the harrow sections on undulating ground due to individual suspensions and lateral compensation of each individual fork VERSATILE •Possibility to mount 6 mm, 7 mm and 8 mm tines •Feeler wheels that can be adjusted to the track width •AS 600 is extendable to 9 m
