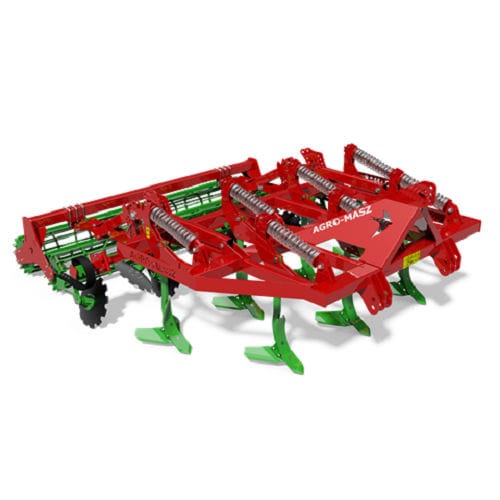

Mounted stubble cultivator APN series
with roller3-point hitchrigid tine

mounted stubble cultivator
mounted stubble cultivator
mounted stubble cultivator
mounted stubble cultivator
mounted stubble cultivator
mounted stubble cultivator
mounted stubble cultivator
Add to favorites
Compare this product


Characteristics

Mobility
mounted
Other characteristic
with roller, 3-point hitch, rigid tine
Width

2.1 m, 2.6 m, 3 m
(6'10" , 8'06" , 9'10" )

Working depth

Min.: 4 cm
(1.6 in)

Max.: 13 cm
(5.1 in)

Description

SKIMMING AGGREGATE WITH NON-STOP PROTECTION A - Machine base: •spring protection •two rows of tines 60 x 25 mm •row of concave discs 460 mm with spring B1 - Mandatory equipment •roller (availabity of rollers on the bookmarker ROLLERS) C - Options: •hydraulic adjustment of working depth •basic lighting MANY POSSIBILITIES IN ONE MACHINE Properly shortened design, high throughput, the possibility of deep and shallow stubble cultivation are strong arguments that will allow you to get great results. The machine is available in the most popular working widths. PREVENT EFFECTIVELY Non-stop. These words include the whole philosophy based on the efficient protection of working elements combined with comfortable operation that does not require frequent operator intervention. For each type of soil, in conditions of non-stony or slightly stony fields, the most effective solution is the double spring system we use to protect each claw. In addition, when the spring's operating range is exceeded, the securing screw will be cut. COMPLEX PROGRAMME OF WORKING ELEMENTS The combination of claws with double-sided blades and a small mouldboard arranged at the right angle to the ground in two rows will allow even and intensive mixing of crop residues without duplication of passages. Thanks to the right combination of distances between beams and ground clearance, they provide excellent results in both light and heavy soil conditions.
