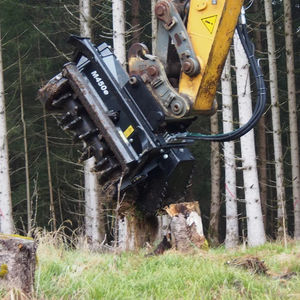

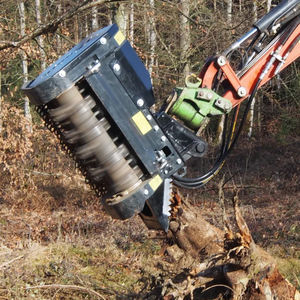

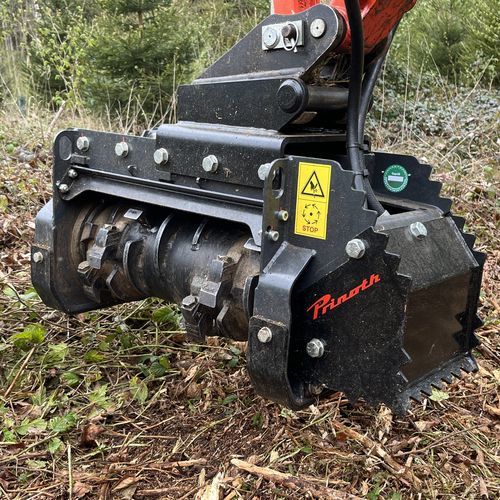

Mounted mulcher GRIZZLY M300e

flailforestryhydraulic

Overview
The Grizzly M300e is a compact forestry mulcher designed for excavators from 1.5 to 4 t. It features a redesigned housing, protected hydraulic routing and rotor technology optimised for efficient mulching in confined and varied job sites.

Your benefits

• Compact, durable housing for versatile entry‑level mulching applications.
• Lightweight and safe: low mass improves manoeuvrability and reduces tipping risk on mini excavators.
• Universal adapter plate with three mounting positions for quick fit to multiple excavator models.
• Choice of powerful gear hydraulic motors (11 cc or 17 cc) to match small excavator flow ranges.
• ES compact rotor tools available in cutting and carbide versions for consistent mulching results.
• Protected hydraulic hoses and chain curtain for reduced downtime and increased operator safety.

Features

• Thumb bracket: fixed thumb bracket to assist material handling; a counterpart can be fitted to add a gripper.
• Universal adapter plate: ready to accept customised attachment brackets in three positions.
• Hydraulic motors: gear motor options 11 cc or 17 cc.
• Rotor: ES compact tool rotor; tools available in cutting and carbide variants (10 x ES compact).
• Protective chain curtain for additional safety during operation.
• Protected hydraulic hoses: hoses and connections integrated within the housing to reduce damage and downtime.
• Adjustable deflector for controlled discharge of mulched material.
• Hardox wear skids: screwed skids for fast replacement and reduced downtime.

Options / Tools

• Tooling: 10 x ES compact (cutting / carbide).
• Hydraulic motor options: 11 cc or 17 cc gear motors.

Technical specifications

• Working width: 570 mm (22.4 in)
• Total width: 895 mm (35.2 in)
• Rotor diameter: 300 mm (11.8 in)
• Weight: approx. 170 kg (375 lbs) depending on configuration
• Recommended flow: 25 - 70 l/min (6.6 – 18.5 gpm)
• Tools: 10 x ES compact (cutting / carbide)
• Excavator class: 1.5 - 4 t
• Max diameter of mulching material: up to 10 cm (up to 4 in)
• Height: 441 mm (16.3 in)
• Depth: 474 mm (18.7 in)
