Mounted mulcher GRIZZLY M350e

flailforestryhydraulic

Overview

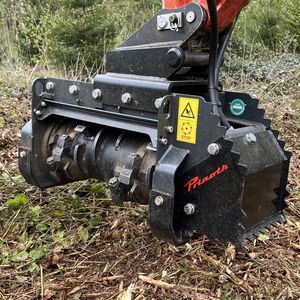

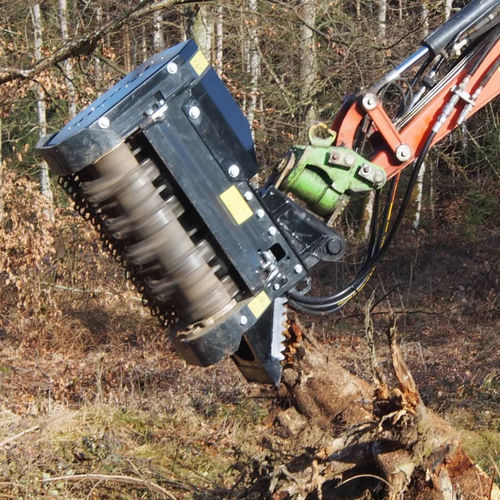

The GRIZZLY M350e is a forestry mulcher engineered for compact excavators from 3.5 to 7 t. Redesigned for small carriers, it features a high-efficiency 60 cc hydraulic gear motor to match low-flow excavators while delivering consistent mulching performance and fine shredding results.

Your Benefits

• Durable construction: housing with wear-resistant skids and bolted Hardox liners protects components and extends service life.
• Safe and adaptable: optional hydraulic or electric protection flap with exchangeable counter blades for improved mulching and extra operator protection.
• Low maintenance powertrain: poly-chain power transfer prevents slippage and reduces upkeep.

Key Features

• Protection flap: hydraulic (or electric) flap for added safety when mulching near roads or in residential areas.
• Thumb bracket (optional): facilitates feeding material; compatible gripper can be fitted with counterpart.
• Universal adapter plate: tailored interfaces for quick mounting/demounting on a range of carriers.
• Hydraulic motor: efficient 60 cc gear motor optimized for small excavator flow ranges.
• Rotor: rotor design accepts 16 BCS tools for effective shredding.
• Protective chain curtain: additional debris protection.
• Protected hydraulic hoses: hoses integrated into the housing to reduce damage and downtime.
• Housing: reinforced body with easy access to service points and counter blades for extra shredding.
• Power transfer: low-maintenance poly-chain system prevents slippage.

Applications
Forestry maintenance, land clearing, plantation management, biomass harvesting, right-of-way maintenance, stump removal, removal of beetle-infested wood, firebreaks and fire prevention, landscaping.

Technical specifications

• Working width: 750 mm (29.5 in)
• Total width: 1,218 mm (48 in)
• Weight: 340 kg (750 lbs)
• Rotor diameter: 350 mm (14 in)
• Hydraulic flow: 45 - 150 L/min (11.9 - 39.6 gpm)
• Tools: 16 x BCS rotor tools
• Recommended carrier: excavator class 3.5 - 7 t
• Max mulching diameter: 12 cm (4.7 in)
• Height (with flap): 715 mm (28 in)
• Depth (without flap): 550 mm (21.9 in)
• Depth (with flap): 561 mm (22.1 in)
