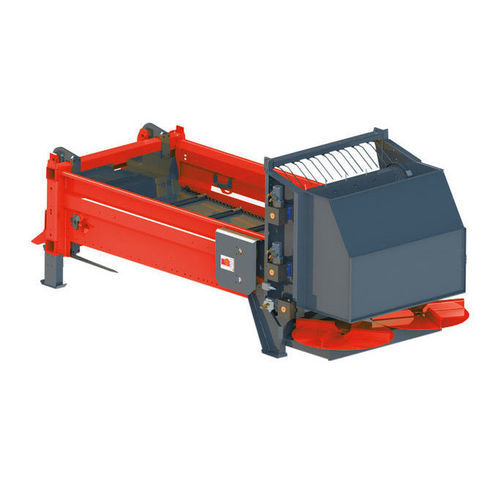

Mounted straw blower DT 250 PIC

beddingfor round balesfor square bales

Overview
The disc straw spreader DT 250 PIC with bale spike is designed for bedding and handling round and square bales in livestock buildings. Equipped with disc spreaders and a bale spike for loading and transport, the DT 250 PIC distributes straw evenly across a working width up to 6 m. A force-control system adjusts conveyor and distributor speeds to limit blockages during bale processing.

Key features

• Bale spike: Handling tool for round and square bales, fitted with 2 tines 130 cm long, Ø 40 mm, with 90 cm spacing between tines.
• Automatic hydraulic connection: Male connector on the spike frame allows control of all hydraulic functions for both the spreader and the spike from the handler (control from the telehandler).
• Tangle preventers and force control: Two tangle preventers synchronized with the moving-floor speed, regulated by a force-control (option) to avoid material buildup and ensure uniform distribution.
• Disc spreaders: Material is distributed by discs to achieve even bedding over widths up to 6 m.
• Moving floor: Force-controlled moving floor regulates feed to prevent blockages when processing bales.

Applications
Bedding and handling of round and square bales for bovine, poultry and swine buildings; loading and straw distribution with automatic adjustment to avoid blockages.

Technical specifications

• Round bales (mm): Ø 180 max
• Square bale dimensions (mm): 120 x 120 x 250
• Overall height (mm): 2000
• Overall length (mm): 4030
• Overall width (mm): 1820
• Hydraulic function: 1 DE
• Required oil flow: 40 – 50 l/min
• Tractor power: –
• Telehandler power (T): 3
• Empty weight (kg): 1100
