Towed straw blower DT 250 MultiDsic

mountedtelescopic armbedding

Presentation

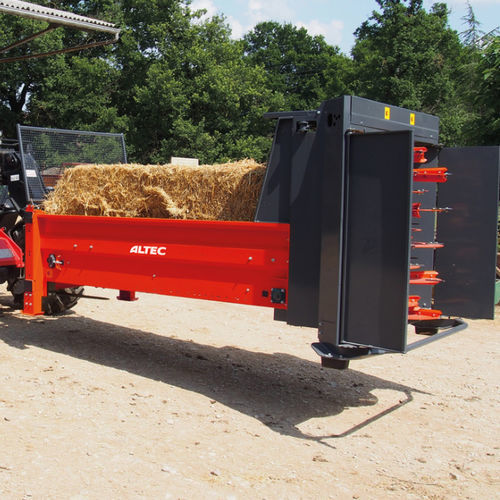

The DT 250 Multidisc rotor straw spreader is available in mounted, trailed and telescopic versions. Designed primarily for spreading square bales (occasional handling of round bales possible), it ensures a high field throughput (approximately one square bale per minute) and uses load-control to provide consistent spreading and prevent blockages. Two rotor sizes are available: 90 cm (standard) and 120 cm (optional).

Key features

• 3 hitch types: available in trailed, telescopic and mounted versions to suit different tractor setups.
• Spreading rotors: rotors fitted with spreading discs, projection plates and retaining combs; overlapping discs channel and control the straw flow.
• Cutting knives on spreading discs: superimposed spreading discs with projection plates allow precise control of the straw flow; suitable for long or compact straw and for occasional round bales.
• Adjustable side deflectors: manually adjustable (electric option) to set spreading width; 180° spreading or adjustable width between 1.80 and 6 metres.
• Load-control: the floor conveyor speed is regulated by a load-control system to avoid material accumulation at the detanglers and to ensure even distribution.

Additional information
Machine adapted for spreading square bales, with occasional round bale handling possible. Two rotor sizes available (90 cm standard, 120 cm optional). High field throughput and anti-blocking system thanks to load-control.

Characteristics / technical specifications

• Round bales (mm): Ø 120 max
• Square bale dimensions: 120 x 120 x 250
• Spreading width (m): 1.80 – 6 m
• Overall height (mm): 1600
• Overall length (mm): 3700
• Overall width (mm): 2000
• Hydraulic function: 1 SE
• Required oil flow: 40 – 50 (l/min)
• Tractor power: 100 HP
• Telescopic power: –
• Unladen weight (kg): 790
