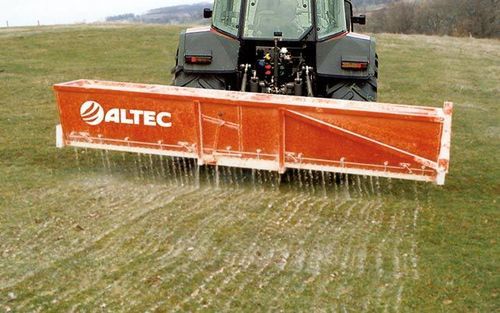

Mounted fertilizer spreader EPP series

dry

Overview
Designed for spreading pulverulent fertilizers, the EPP range delivers uniform and precise application thanks to a central drive and simple adjustment via gates and a flow variator. Spread rates range approximately from 300 to 3000 kg/ha depending on the product used.

Key features

• Robust construction: Hopper reinforced with 3–4 mm steel sheet to resist deformation and ensure long life. Optional cover tarp with metal frame to protect moisture-sensitive products.
• Uniform distribution: Distribution system with vanes ensuring gentle and even spreading.
• Accurate rate control: Quick adjustment using gate and flow variator allowing applications from 300 to 3000 kg/ha depending on product.

Variants and specific uses
Multiple versions are available depending on application: models EPP 100, EPP 200, EPP 300 (standard pulverulent spreaders), EPP 150 DPA (market gardening version with offset wheel on spring to adapt to terrain and ridges) and EPP 250 VITI (to be mounted on high-clearance sprayer, tank composed of 4 communicating hoppers controlled electrically, distribution to 4 vine rows).

Technical sheets by model (excerpt)
EPP 100
Capacity (L) : 100
Overall width (cm) : 108
Overall height (cm) : 75
Spreading width (cm) : 90
Drive : Mechanical with dial
Gate control : Manual
Unladen weight (Kg) : 190

EPP 200
Capacity (L) : 200
Overall width (cm) : 208
Overall height (cm) : 75
Spreading width (cm) : 190
Drive : Mechanical with dial
Gate control : Manual
Unladen weight (Kg) : 240

EPP 300
Capacity (L) : 300
Overall width (cm) : 308
Overall height (cm) : 75
Spreading width (cm) : 290
Drive : Mechanical with dial
Gate control : Manual
Unladen weight (Kg) : 290

EPP 150 DPA
Capacity (L) : 150
Overall width (cm) : 108
Overall height (cm) : 90
Spreading width (cm) : 180
Drive : Hydraulic
Gate control : Hydraulic
Unladen weight (Kg) : 270

EPP 250 VITI
Capacity (L) : 250
Overall width (cm) : 270
Overall height (cm) : 90
Spreading width : 4 outlets (distribution on 4 rows)
Drive : Hydraulic
Gate control : Hydraulic
Unladen weight (Kg) : 290

Characteristics / technical specifications

• Application range: approximately 300 to 3000 kg/ha (depending on product and settings).
• Hopper reinforced in 3–4 mm sheet metal (durability and resistance to deformation).
• Simple adjustment: gates and flow variator for quick adaptation of application rate.
• Vane distribution system for smooth and even spread.
• Drive versions: mechanical dial drive (models 100/200/300) and hydraulic drive (DPA / VITI versions depending on model).
• Options: cover tarp with metal frame to protect sensitive products.
• Specific versions: market gardening model (offset wheel on spring) and VITI version for vineyards (4 communicating hoppers, electric control).
