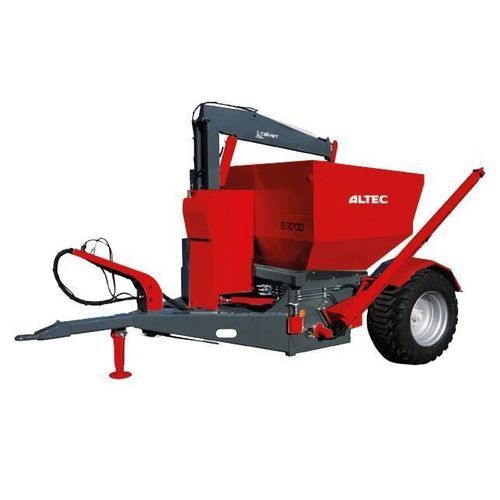

Towed fertilizer spreader S series

dry

Overview
Trailed amendment spreaders of the S series are road-legal and designed for precise distribution of dry products. With stainless-steel components and a robust design for extended service life, the S series delivers homogeneous and highly accurate spreading of dry powders.

Key features

• Robust construction : Floor, hopper augers and opening grid are made of stainless steel to maximize service life and prevent corrosion.
• Unique decompaction : Two counter-rotating augers decompact the material and avoid bridging, ensuring uniform feed to the distribution booms.
• 6 m precision spreading boom : Two auger motors connected in series ensure identical rotation speed for uniform distribution across the booms.
• Adjustable wheels : Independently adjustable wheel heights allow adapting spreading height according to slope.
• Electric control (option) : Cabin-mounted control manages all machine functions and allows adjustment of application rate per hectare.

Technical specifications S 3600
Capacity (L) : 3600
Max load (T) : 4
Overall width (cm) : 250
Hopper width (cm) : 248
Spreading width (cm) : 700
Loading height (cm) : 220
Overall length (cm) : 500
Bag lifter : –
Hydraulic function : 1 single-acting return
Tires : 400 / 60 x 15.5
Unladen weight (kg) : 1480

Technical specifications S 3700
Capacity (L) : 3700
Max load (T) : 4
Overall width (cm) : 250
Hopper width (cm) : 248
Spreading width (cm) : 700
Loading height (cm) : 285
Overall length (cm) : 500
Bag lifter : Yes
Hydraulic function : 1 single-acting return
Tires : 400 / 60 x 15.5
Unladen weight (kg) : 1950

Characteristics / technical specifications

• Series : S (models S 3600 and S 3700)
• Available capacities : 3600 L (S 3600) and 3700 L (S 3700)
• Max load : 4 T
• Spreading width : 700 cm
• Overall width : 250 cm
• Hopper width : 248 cm
• Loading height : 220 cm (S 3600) / 285 cm (S 3700)
• Overall length : 500 cm
• Tires : 400 / 60 x 15.5
• Unladen weight : 1480 kg (S 3600) / 1950 kg (S 3700)
• Hydraulic function : 1 single-acting return
• Bag lifter : available on S 3700
• Construction : stainless-steel components (floor, hopper augers, opening grid)
• Feeding system : 2 counter-rotating augers for decompaction and uniform feeding
• Distribution : motorised booms (2 motors in series) ensuring homogeneous distribution
• Options : electric cabin control for hectare-based calibration
