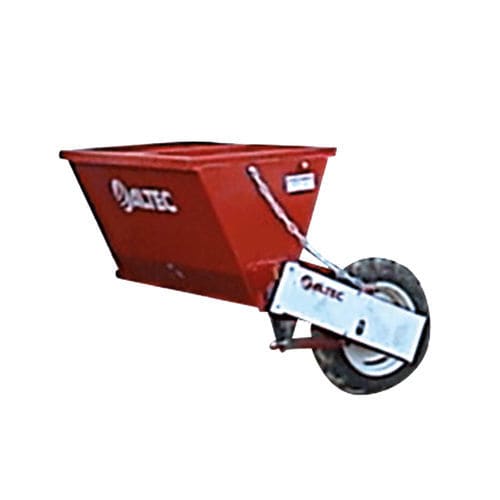

Towed fertilizer spreader EPR 150 DPA

granular

Overview
Designed for spreading granular fertilizers, the EPP spreaders provide uniform and precise distribution thanks to the central drive and simple adjustment via gates and a flow regulator. Application rate is adjustable according to product type, with a range from 300 kg/ha to 3000 kg/ha.

Key features

• Robust design: hopper reinforced with 3 and 4 mm sheet steel, non-deformable for long service life. Optional cover tarpaulin with metal frame to protect weather-sensitive products.
• Uniform distribution: vane-based distribution system ensuring gentle and even spreading.
• Precise application: quick adjustment by gate and flow regulator allowing 300 to 3000 kg/ha depending on the product.

Models / variants on this page

• EPP 100
• EPP 200
• EPP 300
• EPR / EPP 150 DPA — spreader designed for market-gardening use: offset wheel to position inside the tractor track, spring-mounted to adapt to ridge topography and bed height (width 140 cm).
• EPP 250 VITI — trailed spreader for high-clearance machines to distribute fertilizer over 4 vine rows; hopper composed of 4 communicating compartments controlled by electric command to manage distribution.

Technical specifications — EPP 100
Capacity (L) : 100
Overall width (cm) : 108
Overall height (cm) : 75
Working spread width (cm) : 90
Drive : Mechanical dial drive
Gate control : Manual
Empty weight (Kg) : 190

Technical specifications — EPP 200
Capacity (L) : 200
Overall width (cm) : 208
Overall height (cm) : 75
Working spread width (cm) : 190
Drive : Mechanical dial drive
Gate control : Manual
Empty weight (Kg) : 240

Technical specifications — EPP 300
Capacity (L) : 300
Overall width (cm) : 308
Overall height (cm) : 75
Working spread width (cm) : 290
Drive : Mechanical dial drive
Gate control : Manual
Empty weight (Kg) : 290

Technical specifications — EPP 150 DPA (EPR 150 DPA)
Capacity (L) : 150
Overall width (cm) : 108
Overall height (cm) : 90
Working spread width (cm) : 180
Drive : Hydraulic
Gate control : Hydraulic
Empty weight (Kg) : 270

Technical specifications — EPP 250 VITI
Capacity (L) : 250
Overall width (cm) : 270
Overall height (cm) : 90
Spread outlets : 4 outlets (distribution over 4 rows)
Drive : Hydraulic
Gate control : Hydraulic
Empty weight (Kg) : 290

Characteristics / technical specifications

• Range: EPP series (EPP 100, EPP 200, EPP 300; variants EPP/EPR 150 DPA and EPP 250 VITI).
• Available capacities: 100 L, 150 L, 200 L, 250 L, 300 L (depending on model).
• Spreading range: 300 kg/ha to 3000 kg/ha (adjustable by gate and flow regulator).
• Construction: hopper reinforced with 3 and 4 mm sheet metal, non-deformable.
• Options: cover tarpaulin with metal frame for weather-sensitive products.
• Distribution systems: vanes for gentle and even spreading; flow regulator for precise application.
• Drives: mechanical dial drive (EPP 100/200/300) or hydraulic (EPP/EPR 150 DPA, EPP 150 DPA variant, EPP 250 VITI depending on model).
• Gate controls: manual on some models (EPP 100/200/300), hydraulic or electric depending on variant (EPP 150 DPA, EPP 250 VITI for hopper control or regulation).
• Indicative empty weights: 190 kg (EPP 100), 240 kg (EPP 200), 290 kg (EPP 300), 270 kg (EPP 150 DPA), 290 kg (EPP 250 VITI).
• Specific applications: VITI version for high-clearance machines and distribution over 4 vine rows; DPA version adapted to market gardening (offset wheel, spring suspension for ridge terrains).
