Towed forestry wood chipper AM-200BD-K

wheeledgasoline enginehydraulic supply

Product overview

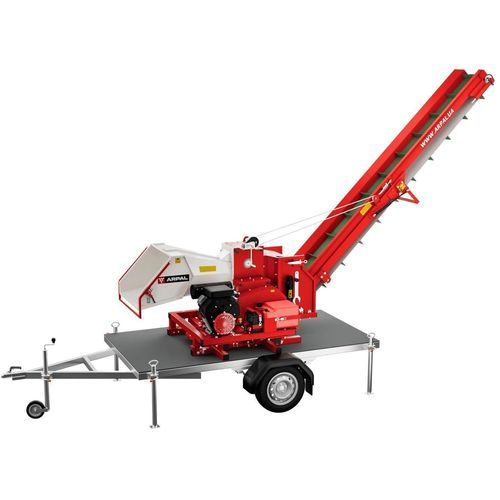

The ARPAL MAX wood chipper (AM-200BD-K) is the flagship gasoline-driven model of the ARPAL chipper range, designed for mounting on a trailer (trailer not included), with a full 360° rotating feed platform and an adjustable conveyor transporter. Supplied without a road trailer; mounts on the customer's trailer or platform. Engineered for professional use in forestry, municipal services, agriculture and contracting, it processes branches up to 200 mm in diameter with a throughput of up to 14 m³/h.

The machine converts raw timber waste — branches, slabs and edgings — into uniform firewood chunks of 120–240 mm. This output is a superior fuel for solid-fuel and pyrolysis boilers, fireplaces and stoves, and an ideal feedstock for charcoal production. Thanks to the optimal fraction size, the chunks season naturally without specialized drying and store significantly better than traditional logs.

ARPAL equipment is built in accordance with EU safety directives and is trusted by customers in Germany, Denmark, the United Kingdom, Switzerland, Canada, and beyond.

Key features

• 360° rotating feed platform — convenient loading from any side without repositioning the machine.
• Aero-Lift conveyor system with gas struts: a single operator folds and unfolds the conveyor; loading height adjustable up to 3.5 m via a heavy-duty manual winch.
• Premium four-layer polymer belt (made in the Netherlands) with ultrasonically welded cleats.
• PureCut shredding technologies: ARPAL ExtraCut knives in AISI 5140 steel with a precision double-bevel edge, induction-hardened to ~50 HRC over a ductile core — up to 200 m³ of wood per sharpening, up to six maintenance cycles.
• KineticCore gearbox with a 7.84× torque multiplication and three induction-hardened gears — confident cutting of maximum-diameter branches under heavy load.
• 54 kg stabilizing inertia flywheel accumulates kinetic energy, compensates peak loads and prevents RPM drops on thick branches.
• ARPAL Total Protect safety package: PowerGuard friction clutch and SmartFix tapered couplings slip on overload (~2000 Nm) to protect the drive train; extended hopper geometry makes contact with the knives physically impossible; Quick Stop emergency handle at the hopper edge; all belts and flywheels fully enclosed in protective guards with a safety curtain at the input.
• Easy Start clutch engagement near 1500 rpm — smooth, stress-free startup for both operator and engine.
• ErgoBase functional design: reinforced heavy-duty hopper with 4 mm steel flange and perimeter stiffening ribs, plug-and-play operation with no complicated setup, and premium electrostatic powder coating that keeps the machine corrosion-free and "like-new" even after years of outdoor use.
• Available in configurations without the rotating platform or conveyor.

Technical specifications

• Model: ARPAL MAX (AM-200BD-K)
• Drive: gasoline engine, 35 HP
• Max. engine speed: 3,600 rpm
• Recommended fuel: unleaded gasoline, RON 95
• Max. branch diameter: 200 mm
• Output chunk size: 120–240 mm
• Max. productivity: 14 m³/h
• Working blades: 6 (ARPAL ExtraCut, AISI 5140 steel)
• Max. blade speed: 165 rpm
• Conveyor loading height: up to 3.5 m (adjustable)
• Feed opening size: 265 × 280 mm
• Dimensions (working position): 5320 × 2030 × 3800 mm
• Dimensions (storage position): 4360 × 2030 × 3000 mm
• Weight: 1,480 kg
• Flywheel mass: 54 kg
• Torque multiplication: 7.84× (KineticCore gearbox)
• Mounting: designed for trailer installation; trailer not included

Documentation

Operator and maintenance manual available for download, including detailed setup, operation and service instructions.


Warranty

3 years on the equipment; the engine is covered by a separate 1-year manufacturer's warranty. Full technical support throughout the entire service life of the machine.
