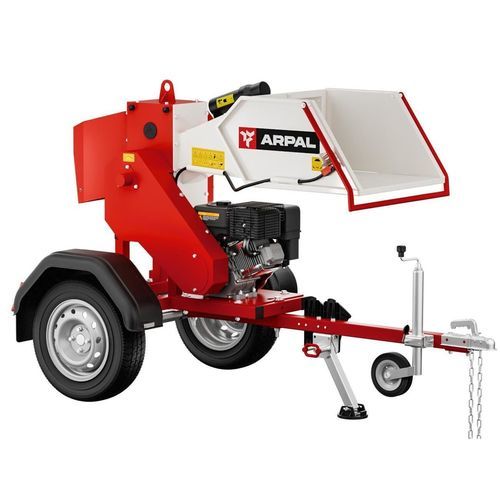

Towed wood chipper ARPAL PRO

mountedwheeledgasoline

Product overview

The ARPAL AM-120BD PRO is a wheeled, gasoline-powered wood chipper from ARPAL's professional range, designed for rapid processing of branches up to 120 mm in diameter with a throughput of up to 6 m³/h. Built for intensive daily use by farmers, arborists, municipal services and landscape contractors, it complies with EU safety directives and is trusted by customers in Germany, Denmark, the United Kingdom, Switzerland, Canada and beyond.

The machine converts branches and timber waste into uniform firewood chunks of 90–180 mm — a superior fuel for solid-fuel and pyrolysis boilers, fireplaces and stoves, and an ideal feedstock for charcoal production. Thanks to the optimal fraction size, the chunks season naturally without specialized drying and store significantly better than traditional logs.

Key features

• Professional AL-KO axle with car-type wheels and a hitch-mount frame. As agricultural equipment, the chipper can be towed by a tractor; on-road towing regulations for passenger vehicles vary by country — please check local requirements.
• PureCut shredding technologies: ARPAL ExtraCut knives in AISI 5140 steel with a precision double-bevel edge, induction-hardened to ~50 HRC over a ductile core — up to 200 m³ of wood per sharpening, up to six maintenance cycles.
• KineticCore gearbox with induction-hardened gears multiplies torque for confident cutting of maximum-diameter and irregular branches.
• Stabilising inertia flywheel accumulates kinetic energy, compensates peak loads and prevents RPM drops on thick branches.
• SmartFix tapered couplings ensure perfect knife alignment and slip on extreme overload (~2000 Nm), protecting shafts and gears.
• ARPAL Total Protect safety package: extended hopper geometry makes contact with the knives physically impossible; Quick Stop emergency handle at the hopper edge; PowerGuard friction clutch protects the engine from overload; all belts and flywheels fully enclosed in protective guards with a safety curtain at the input.
• Easy Start clutch engagement near 1500 rpm — smooth, stress-free startup for both operator and engine.
• ErgoBase functional design: reinforced heavy-duty hopper with perimeter stiffening ribs, plug-and-play operation, easy hand-access to service points, and premium electrostatic powder coating that keeps the machine corrosion-free and "like-new" even after years of outdoor use.
• Options: dual output hopper-sorter for bagging chunks into mesh bags; additional knife sets.

Technical specifications

• Model: ARPAL AM-120BD PRO
• Drive: gasoline engine, 20 HP
• Max. engine speed: 3,600 rpm
• Recommended fuel: unleaded gasoline, RON 92/95
• Specific fuel consumption: 230 g/hp·h
• Max. branch diameter: 120 mm softwood / 100 mm hardwood / 85 mm dry wood
• Output chunk size: 90–180 mm
• Max. productivity: 6 m³/h
• Working blades: 6 (ARPAL ExtraCut, AISI 5140 steel)
• Max. blade speed: 240 rpm
• Feed opening size: 160 × 280 mm
• Dimensions (working position): 2702 × 1294 × 1688 mm
• Transport dimensions (disassembled, on pallet): 1200 × 1200 × 1663 mm
• Weight: 430 kg

Documentation

Operator and maintenance manual available for download, including detailed setup, operation and service instructions.

Warranty

3 years on the equipment; the engine is covered by a separate 1-year manufacturer warranty. Full technical support throughout the entire service life of the machine.
