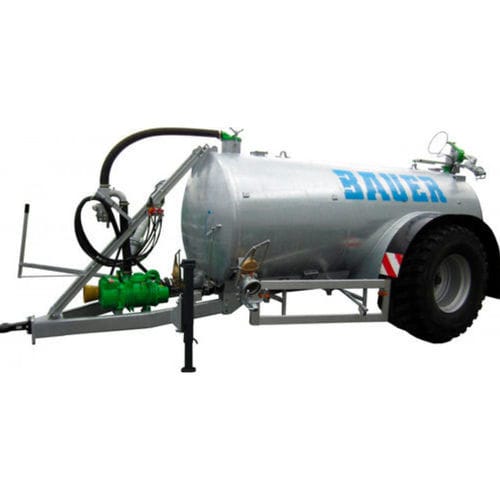

Single-axle slurry tanker K series

vacuumpressurewith centrifugal pump

Thanks to the three switching positions of the BAUER combi unit (compressor — compressor and centrifugal pump — centrifugal pump), the combi tanker can also be used as a pumping station. The suction opening can be used as an additional cleaning opening. Especially for your requirements Options for Combi Tankers Pressure Outlet A pressure outlet after the high-pressure pump is used as a connection for the hoses or for pumping off. Additional Dome An additional dome on top of the tanker is available in 2 executions. As a manually opened lid with a diameter of 320mm or as a hydraulic version with a diameter of 450mm. Turbo-filler Turbo-filler, the effective filling aid: The flow-optimised cast pump housing, adopted from BAUER pumping technology in which an impeller insensitive to foreign bodies runs at high speed, considerably supports the normal suction process. The compressor can be run at low speed. This makes the vacuum tanker almost completely full again and reduces the filling time. Air Mixing Device The slurry is agitated in this area by air flowing in via sleeves. Check valves protect the compressor. Tankers with a compressor size of B33 to B83 are equipped with one mixing tube. As from compressor type Star, two mixing tubes are installed. Uphill Spreader Uphill spreader: When driving uphill, a combi tanker cannot be emptied completely due to the system. The uphill spreader allows to select the spreading situation and to empty the tanker completely. Automatic Suction And without getting off the tractor. With a suction arm (automatic suction), you hydraulically dock the suction line into a suction funnel placed on the slurry pit/lagoon.
