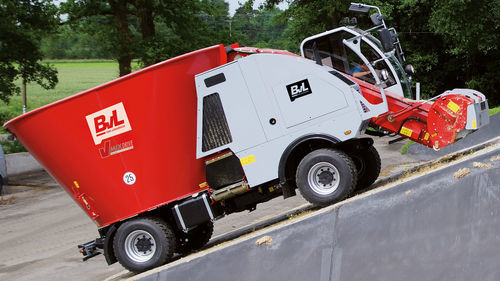

Vertical mixing wagon V-MIX Drive

self-propelled2-auger

Overview
Comprehensive accessories for V-MIX Drive self-propelled mixer wagons, covering on-the-go feed analysis, camera and safety systems, drive and steering options, stainless steel linings and feed management solutions.

New NIR sensor for the V-MIX Drive

• Uses Dinamica Generale EVONIR near-infrared (NIR) technology for inline analysis during discharge.
• Installed at the V-MIX Drive discharge arm and measures directly within the forage flow in real time.
• Continuously measures: dry matter, crude protein, starch, sugars, fibre (ADF/NDF), crude ash and crude fat.
• System can automatically adjust feed quantity based on dry matter to ensure consistent rations.
• Result: more consistent ration composition, reduced feed losses and residues, and more stable milk yield.

Birdview camera system (option)

• Provides an all-round bird's-eye overview to simplify manoeuvring and improve safety in barn entrances, narrow passages and during discharge.
• Equipped with a 10' monitor delivering clear real-time images for precise positioning.

BvL four-wheel drive

• Selectable four-wheel drive available for all V-MIX Drive self-propelled mixer wagons.
• 4WD engaged on demand to improve traction on difficult or wet ground and in winter conditions.
• 100% differential lock available to assist recovery of a bogged machine.

BvL 4-wheel steering

• Optional 4-wheel steering significantly reduces outer turn radius for improved manoeuvrability in confined spaces.
• Example outer turn radii: Maximus 1S = 4.5 m; Maximus 2S = 6.5 m.

BvL stainless steel lining

• Available stainless steel lining options: V2A Basic and V2A Profi, made from high-alloy V2A stainless steel (material no. 1.4301).
• Variants differ by thickness and height; material is rustproof, acid-resistant and wear‑resistant.

BvL V-CONNECT Dairy Feeder

• Online feed management system with mobile and web access for ration planning and monitoring.
• Collects and analyses feeding accuracy, feeding times, feed quantities, IOFC and feed conversion efficiency.
• Calculates rations, communicates with the mixer wagon in real time and automates logging of feeding activities.

AI reversing camera system

• Reversing camera assistant with AI-based person and object recognition.
• Multi-stage warning concept with visual and acoustic alerts configurable by the operator.
• Reaction areas configurable; system setup via PC or smartphone over WLAN.

Caractéristiques / spécifications techniques

• Measured NIR parameters: dry matter, crude protein, starch, sugars, ADF/NDF, crude ash, crude fat.
• NIR sensor mounting: discharge arm; measurement directly in forage flow; real-time analysis; automatic feed quantity adjustment by dry matter.
• Birdview camera: 10' monitor for clear real-time images.
• 4WD: switchable on demand; 100% differential lock available.
• 4-wheel steering outer turn radii: Maximus 1S = 4.5 m; Maximus 2S = 6.5 m.
• Stainless steel lining: V2A Basic and V2A Profi (material no. 1.4301); variants differ in thickness and height.
• V-CONNECT Dairy Feeder: internet-based feed management, real-time communication and automated logging of feeding operations.
• AI camera: person/object recognition, configurable reaction areas, visual and acoustic multi-stage warnings, setup via PC/smartphone over WLAN.
