viticulture sprayer / folding arms / pneumatic / air-assisted
CRUIS'AIR 9080N

{{requestButtons}}

Characteristics

  • Application:

    for viticulture

  • Other characteristics:

    folding arms, pneumatic, air-assisted, for straddle tractors

  • Capacity:

    800 l, 1,500 l (211.3 gal)

Description

An all-in-one spray unit

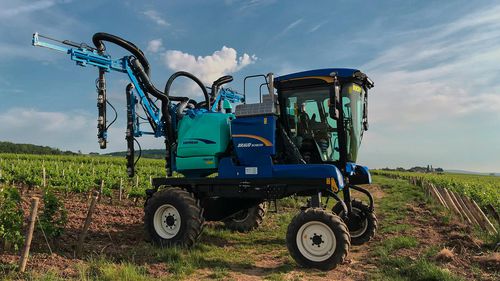

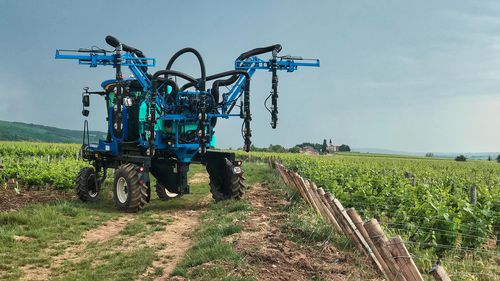

The Cruis'air for New Holland Braud 9080N is an all-in-one spray unit that incorporates a tank-chassis, fan unit and boom.

Tags : Partnership with New Holland-Braud EC Tronic Air Drive IntelliView IV SPEEDAIR-SUPAIR fan Category 4 cab

Ease of handling and productivity for intensive and sustainable use

-Ultra compact assembly (road width, etc ..)
-Easy handling at field ends (lifting + variable geometry combined)
-Quick coupling
-Extensive boom
-Assisted driving (ACS Auto folding, ground monitoring, etc ...)

Simplified operation

-Berlogic
-Ladder for access for the platform
-Easily accessible maintenance device
-NH + cab controls (if necessary a 4th point for tractor)

Powerful and precise spraying

-Speedair/Supair ventilation
-CG for spraying on both sides
-Easyflo
-AB MOST and AIR DRIVE sprayer made by RIM

Tank-chassis

- Main tank with a 800 or 1,500 L capacity
- 200 L rinse tank and 20 L hand wash tank
- Retractable ladder and access platform for safe access to the filling hole

Fan

- Ultra-compact fan unit with Speedair or Supair fan
- Closed-centre impeller measuring 560 mm (Speedair) or 630 mm (Supair)
- High-density polyethylene cage with radial outlets
- Hydraulic drive


Operation

-Berlogic control panel
- Intake filtration and centralised discharge filtration
- High-pressure mixing unit
- Section shut-off valves with discharge circuit
- Rinsing of the tank and boom without return to the tank

RegulationIntegrated DPAE EC Tronic

Booms

Extensive booms
7 rows for vines from 0.90 m to 1.50 m
9 rows for vines from 0.90 m to 1.20 m
