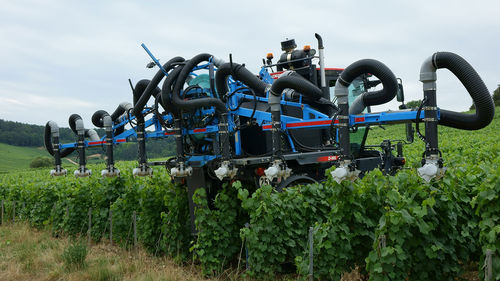

Self-propelled sprayer COMPACT SPEEDAIR

for straddle tractorsfor viticulturehydraulic

The COMPACT SPEEDAIR and SUPAIR unit has been designed to adapt to any straddle, single-row and three-row tractor. Users can come up with their own personalised treatment tool while benefiting from BERTHOUD know-how. Three types of booms can be fitted to the unit: ACTIVE booms with vertical folding, INTENSIVE booms with simplified manual spacing and hydraulic telescopic EXTENSIVE booms with proportional spacing. Chassis – One-piece chassis protected by U.H.R. polyester paint – Polyethylene ventilation cage with integrated air distributor. – Hydraulic drive system Ventilations SPEEDAIR – High-pressure closed impeller fan 16 blades ø 560 mm. SUPAIR – High-pressure closed impeller fan 20 blades ø 630 mm. Pump – Piston diaphragm pump (20 bar 60l/min), option (20 bar 105l/min). – Hydraulic drive system. – The tractor must be fitted with a flow divider to adjust the pump speed. Operation - – Valves grouped together on Berlogic (remote) with position indicators. – 1 tank rinsing kit Regulation - – Manual pressure adjustment Equipements - – CG EXPERT : Face to face pneumatic from above – AB MOST : Face by face pneumatic in the line spacing – AIR DRIVE : Face by face jet carried between the lines
