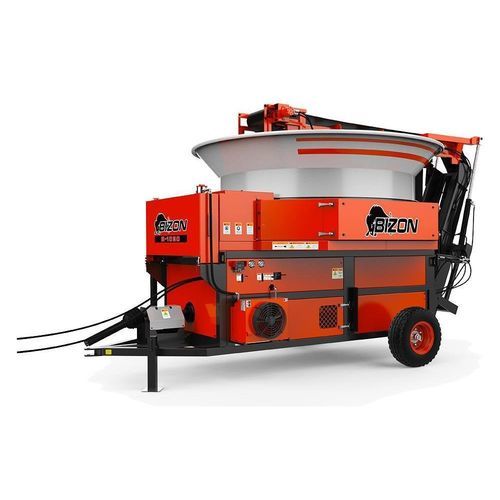

Feed crusher B-1130

Description
Our drum shredders operate in the toughest agricultural conditions worldwide. Reliability, availability and efficiency characterize BIZON machines. The BIZON drum shredder range is designed for shredding straw, hay, corn and various biomasses with selectable screen sizes and multiple drive options.

Areas of use
Feed preparation for cattle

• Precise chopping length adjustment to meet nutritionist recommendations
• Optimization of TMR structure for improved digestibility
• Elimination of selective feeding and reduction of wastage
• Shorter TMR preparation times, fuel savings and lower wear on mixers
• Improved rumen health and increased dry matter intake in dairy cows
• Capable of processing hay, straw and silage

Bedding preparation

• Processing large straw bales to optimal bedding length
• Use of large screens (e.g. 127 mm or 178 mm) for high throughput up to ~50 t/h
• Improved absorbency due to optimal chopping length
• Reduced bedding material consumption and costs
• Increased animal comfort and improved barn hygiene
• Easier handling and spreading of bedding

Corn and cereal grinding

• Capable of crushing both wet and dry corn
• Choice of screen sizes to set grind from fine to coarse
• Quick screen change to adapt to changing conditions (e.g. grain moisture)
• Year‑round use compared with conventional hammer mills
• Higher grain digestibility and potential increase in milk yield
• Suitable for various cereal types

Biomass processing

• Ability to process a wide range of materials including wet straw bales and manure
• Ideal for preparing feedstock for biogas plants
• Processing of forestry and agricultural residues
• Preparation of material for pellet production
• Adjustable settings for different biomass types and target output sizes

Available models

• B-800: model for smaller operations; PTO drive from tractor (~90 hp) or optional electric motor (some sources show 75–90 kW); listed curb weight ~2500 kg (FAQ also lists 2450 kg); equipped with 48 hammers.
• B-1030: mid-range model offering throughput and flexibility; PTO drive (text indicates from 120 hp, FAQ gives 90–210 hp), or optional electric or diesel drive; total weight ~4500 kg; equipped with 64 hammers.
• B-1130: large model for demanding tasks; fitted with 88 hammers; can be PTO driven (text indicates from 210 hp, FAQ gives 200–315 hp), electric or diesel drive; crushing chamber hydraulically operated for easy maintenance; FAQ weight ~6500 kg.

Operation, drive and connections

• Standard drive: tractor PTO (1000 rpm)
• Optional: electric motor or diesel engine
• Tractor hitch options: drawbar eye, K80 ring, Clevis hitch
• PTO shaft requirement: 21 splines, 35 mm diameter (1 3/8' profile)

Materials and output sizes

• BIZON shredders process: straw (wheat, barley, oats, oilseed rape), hay, corn cobs and grain, cereals, miscanthus, alfalfa, harvest residues, wet or dry materials, biomass for biogas, manure and green waste for composting.
• Screen hole diameters to adjust chop length: 2 mm to 200 mm.

Technical characteristics / specifications

• Machine type: drum shredder (BIZON)
• Model range: B series (B-800, B-1030, B-1130)
• B-800: ~48 hammers; weight listed ~2500 kg (some references 2450 kg); recommended tractor power varies across documents (75–130 hp or from 90 hp); optional electric motor (listed 75–90 kW in some places)
• B-1030: ~64 hammers; weight ~4500 kg; tractor power cited as from 120 hp (FAQ 90–210 hp); optional electric or diesel drive
• B-1130: ~88 hammers; FAQ weight ~6500 kg; tractor power cited from 210 hp (FAQ 200–315 hp); hydraulically operated crushing chamber for easier maintenance
• Screen sizes: 2–200 mm (selectable to achieve required chop length/output size)
• Performance (depending on model and screens): up to approx. 50 t/h with large screens
• Drive: standard PTO (1000 rpm), optional electric or diesel engine
• Connections: drawbar eye, K80 ring, Clevis hitch
• PTO shaft: 1 3/8' profile, 21 splines, 35 mm diameter
• Applications: TMR preparation, bedding preparation, corn and cereal grinding, biomass processing, feedstock preparation for biogas plants and composting
