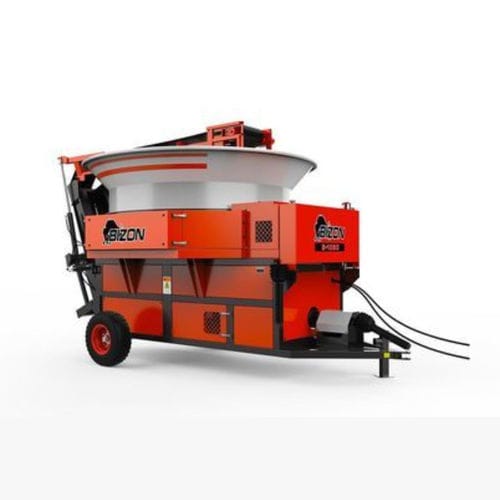

Feed crusher B-1030

Introduction
BIZON drum shredders operate in demanding agricultural conditions worldwide. Designed for preparation of cattle feed, bedding production and biomass processing, the machines combine flexible screening options and multiple drive choices.

Applications

• Feed preparation for cattle: efficient processing of straw and hay to produce optimal chop length for improved rumen health and nutrient intake.
• Bedding production: shredding large straw bales to specified lengths; use of large screens (e.g. 127 mm or 178 mm) enables throughput up to 50 t/h.
• Grain grinding: processing wet or dry maize and cereals with selectable screens to adjust output coarseness.
• Biomass processing: handling wet bales, manure, green residues and woody material for composting, pelleting or AD feedstock.

Feed preparation — details

• Adjustable chop length to meet nutritionist recommendations.
• Optimisation of TMR structure for improved digestibility.
• Reduction of selective feeding and feed waste.
• Shorter TMR mixing times, fuel savings and lower wear on mixers.
• Supports processing of hay, straw and silage.

Bedding preparation — details

• Efficient processing of large straw bales to optimal bedding length.
• Option for large screens (e.g. 127 mm or 178 mm) to reach up to ≈50 t/h capacity.
• Improved absorbency and reduced bedding consumption.
• Enhanced animal comfort and barn hygiene.

Grain grinding — details

• Suitable for wet and dry maize kernels and cereals.
• Multiple screen sizes available to set output from fine milling to coarse crushing.
• Quick screen change to adapt to varying moisture conditions.
• Year-round machine use compared with conventional hammer mills.
• Potential increase in digestibility and milk production.

Biomass processing — details

• Capable of shredding a wide range of materials: wet bales, manure, harvest residues, woody and green material.
• Suitable as pretreatment for anaerobic digestion and for pellet production.
• Adjustable settings to achieve required output sizes.

Available models

• B-800: for smaller operations; PTO-driven or optional electric motor; listed weight ~2500 kg (FAQ also shows 2450 kg); 48 hammers; recommended tractor power ≈75–130 hp.
• B-1030: mid-range model with flexibility; PTO standard, optional electric or diesel drive; listed weight ~4500 kg; 64 hammers; quoted power range ~90–210 hp (sources vary).
• B-1130: large model for heavy-duty tasks; 88 hammers; hydraulically operated crushing chamber; PTO, electric or diesel drive options; FAQ weight ~6500 kg; power range approx. 200–315 hp.

Powertrain and options

• Standard drive: tractor PTO (1000 rpm).
• Optional drives: electric motor or diesel engine.
• Tractor hitch options: drawbar eye, K80 eye, Clevis hitch.
• Requires a PTO shaft with 21 splines and 35 mm diameter (1 3/8" profile).

FAQ — selected information

• Screen hole sizes for chop length: range from 2 mm up to 200 mm.
• Materials processed by BIZON: straw (various types), hay, maize cobs and grain, cereals, miscanthus, alfalfa, crop residues, wet and dry material, manure, green composting material, etc.

Technical characteristics / specifications

• Number of hammers: B-800 = 48; B-1030 = 64; B-1130 = 88.
• Weights: B-800 ≈2500 kg (FAQ 2450 kg), B-1030 ≈4500 kg, B-1130 ≈6500 kg.
• Required tractor power: B-800 ≈75–130 hp; B-1030 approx. 90–210 hp; B-1130 approx. 200–315 hp.
• Screen aperture range: 2 mm to 200 mm (custom sizes available).
• Throughput: up to ~50 t/h with large screens (e.g. 127 mm or 178 mm) for bedding production.
• Applications: TMR preparation, bedding, maize grinding, biomass for AD and compost.
• Hitching: drawbar eye / K80 eye / Clevis; required PTO shaft: 21 splines, 35 mm diameter (1 3/8").
• Drives: standard PTO (1000 rpm); optional electric or diesel drives.
• Additional documentation: product brochure (PDF) available with full specifications.
