Elbow irrigation fitting Linea 4000 - Outdoor & Giardinaggio

threadedpolypropylenefor pipes

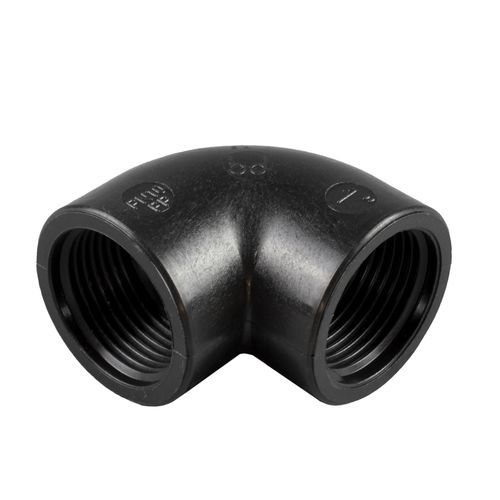

A 90° elbow in black polypropylene designed with female G (GAS) threaded ends for pipe connection applications in outdoor and gardening lines.

Variants

• Code: 0400250.050303 — G: 1/2" — L(1): 16 — H: 42.5 — H1: 42.5 — E: 29
• Code: 0400250.050505 — G: 3/4" — L(1): 19.5 — H: 50.5 — H1: 50.5 — E: 35
• Code: 0400250.050707 — G: 1" — L(1): 20 — H: 59 — H1: 59 — E: 43
• Code: 0400250.050909 — G: 1"1/4 — L(1): 22.5 — H: 73 — H1: 73 — E: 57
• Code: 0400250.051111 — G: 1"1/2 — L(1): 26 — H: 85 — H1: 85 — E: 65
• Code: 0400250.051515 — G: 2" — L(1): 30.5 — H: 104 — H1: 104 — E: 80.5

Resources

• 3D models / downloadable archive available: files/0400250.zip (ZIP archive)

Specifications

• Material: black polypropylene
• Connectivity standard: Internal thread GAS cylindrical ISO 228/1
• Operating pressure: 10 bar at 20... (value shown truncated on source)
• Product line / category: Line 4000 - Outdoor & Gardening
