Straight irrigation fitting 0400130.050313

barbedpolypropylenemale

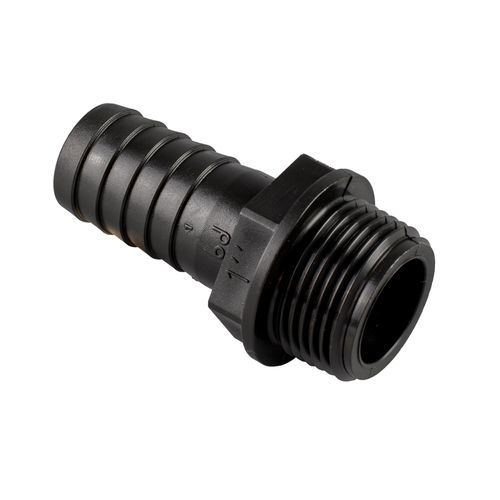

A straight male hose barb in black polypropylene intended to connect a DN hose to a male G1 threaded port. Designed for outdoor and gardening applications as part of the Line 4000 collection.

Key features

• Straight male hose barb geometry for direct hose-to-thread connection
• Material: black polypropylene
• Connections: one end for DN hose connection and one male end with G1 thread
• Intended application: Outdoor & Gardening (Line 4000)
• Product imagery available (multiple views)

Available variants

• 0400130.050313 — G1: 1/2" · DN: 13 (1/2") · D: 8 · D1: 14 · H: 55.5 · L(a): 26 · E: 28 · L: 14.5 · K: 22
• 0400130.050316 — G1: 1/2" · DN: 16 (5/8") · D: 10 · D1: 14 · H: 64.5 · L(a): 26 · E: 28 · L: 14.5 · K: 22
• 0400130.050320 — G1: 1/2" · DN: 20 (25/32") · D: 14 · D1: 14 · H: 64.0 · L(a): 26 · E: 28 · L: 14.5 · K: 22
• 0400130.050325 — G1: 1/2" · DN: 25 (1") · D: 13.5 · D1: 14.5 · H: 68.5 · L(a): 37 · E: 28 · L: 14.5 · K: 22

Technical specifications

• Commercial denomination: STRAIGHT M HOSE BARB
• Material: polypropylene (black)
• Type: straight male hose barb
• Connections: one end for DN hose, one male end with G1 thread
• Product line / category: Line 4000 - Outdoor & Gardening
• Manufacturer: Bucchi Srl
