Elbow irrigation fitting 0801252.060909

threadedPPpolypropylene

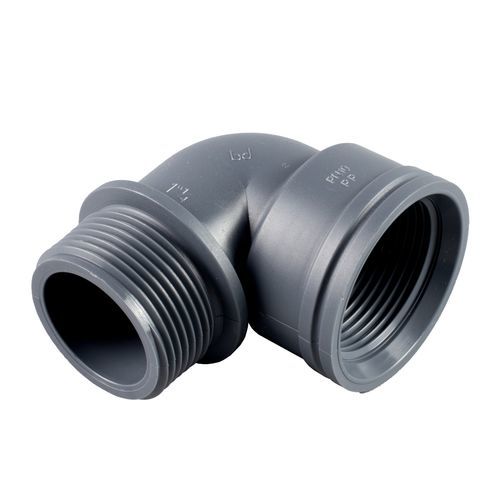

90° elbow in dark gray polypropylene featuring one male G1 (external) GAS cylindrical ISO 228/1 threaded end and one female G (internal) GAS cylindrical ISO 228/1 threaded end. The product is part of the Line 8000 - PVC free range by Bucchi Srl.

Available variants

• Code 0801252.060909 — G1: 1\"1/4, G: 1\"1/4, L: 21, L(1): 24,5, H: 72,5, H1: 79,5, E: 49,5
• Code 0801252.061111 — G1: 1\"1/2, G: 1\"1/2, L: 21, L(1): 24,5, H: 79,5, H1: 88,5, E: 58
• Code 0801252.061515 — G1: 2\", G: 2\", L: 24, L(1): 28, H: 96, H1: 106,5, E: 70,5

Documents available on the page

• 3D models and datasheet package available for download as a ZIP file (files/0801252.zip)

Characteristics / technical specifications

• Connectivity standard (external): External thread GAS cylindrical ISO 228/1
• Connectivity standard (internal): Internal thread GAS cylindrical ISO 228/1
• Notes on sealing: Bucchi Srl adopts ISO 228/1 as standard connection and uses an internal soft conical thread to improve hydraulic seal; slight key tightening is expected to ensure hydraulic seal (see tightening torque table)
• Operating pressure: 10 bar at 20°C
• Max working temperature: 80°C
• Materials: Polypropylene (PP)
• Colors: Dark gray (RAL 7015)
• Product family / line: Line 8000 - PVC free
