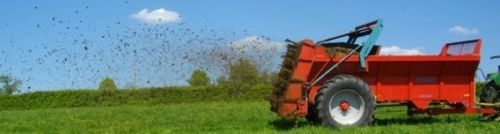

Towed manure spreader EHV 14/10

verticals beaterssingle-axlecompost

The BUCHET moving-floor spreaders are agricultural spreaders designed for precise, uniform application of organic materials (manure, compost). They combine a moving-floor (accompanying belt) drive and a half-belt to prevent product slippage and ensure homogeneity and accuracy from start to finish.

Main components and functions

• Product drive by moving floor and half-belt composed of 2 chains and slats to prevent slippage and ensure consistency across products (strawy manure or compost).
• Inclined beaters at 20° to reduce collapse in the box and improve spreading regularity.
• Double-arm gate allowing effective smoothing of the top of the load and rapid load build-up.
• Hammers on the beaters in addition to knives to improve spreading of decomposed or light products; hammers can retract to reduce power demand with strawy products (patented).
• Control unit (patented) to manage spreading parameters (width and rate) and automate operation.
• DPA (Proportional-to-advance dosing) to maintain hectare dosing regardless of tractor speed or slippage.
• Integrated weighing (patented) to simplify use by removing density adjustment and reduce errors linked to fill height.
• Automated edge flap for better valorization of organic material at field edges.
• Operator display providing spreading time, floor speed, number of trips, weight, area spread, floor position, oil pressure, supply voltage, etc.
• Product protected by 4 invention patents.

Test results and performance

• IRSTEA (ex CEMAGREF) tests with 18 hammers: overall spread width = 20 m, between-passes width = 14 m with coefficient of variation below 10% in compost (standard requires < 30%).
• Extent (percentage of time where spreading is regular) obtained: 95% in compost.
• Rapid load build-up at the start of spreading and gradual decrease at the end.
• Maximum deviation observed between IRSTEA measured dose and operator-selected dose: never greater than 6% in tests.

Documentation

• Technical documentation and data sheet available for download (PDF): moving-floor spreader documentation.

Specifications / technical data

• Overall spreading width: 20 m
• Effective between-passes width: 14 m
• Coefficient of variation (compost): < 10%
• Extent of regular spreading (compost): 95%
• Dose deviation (measured vs selected): ≤ 6% (IRSTEA tests)
• Top box width: 2.20 m
• Inclined beaters: 20°
• Drive system: moving floor + half-belt (2 chains + slats)
• Available functions: control unit (dosing & width), DPA (proportional-to-advance dosing), integrated weighing, automated edge flap
• Patented elements: retractable hammers, control unit, weighing (at least 3 patents mentioned); 4 invention patents protecting the spreader
• Double-arm gate for smoothing and load build-up
• Operator display: spreading time, floor speed, number of trips, weight, area spread, floor position, oil pressure, supply voltage
