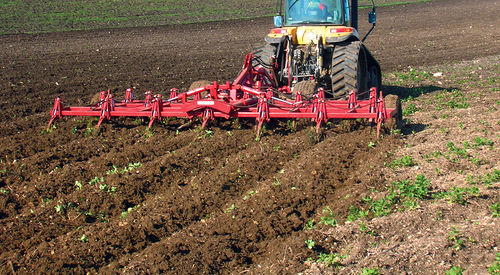

Hydro-pneumatic field cultivator A.C.I.P. 13V 4F

mountedfolding3-point hitch

Presentation
The new range of 4-row hydropneumatic cultivators is engineered to work soils with substantial crop residues where conventional two-row cultivators cannot operate effectively. The design enables higher working speeds while ensuring uniform tillage across the full width.

Promotional data / usage examples
1000 hectares = a single working unit
1000 hectares of wheat = 80,000 quintals of product
1000 hectares = 1000 satisfactions

Models / variants cited

• ACIP 21V
• ACIP 17V
• ACIP 11VP (hydropneumatic cultivator with manual folding frame)

Functional notes
Tool spacing can be 26 cm or 28 cm; within each crossbar the arm spacing is 104 cm or 112 cm, which promotes the flow of soil and residues and the formation of ridges to improve rainwater drainage and speed drying. The 4-row layout allows operation on fields with high amounts of plant residue and achieves consistent working depth across the working width. Working pressure is adjustable from the tractor cab to adapt tip penetration to soil conditions; tip force can vary from 100 to 250 kg.

Characteristics / technical specifications

• Type: 4-row hydropneumatic cultivators
• Tool spacing: 26 cm or 28 cm
• Arm spacing on crossbars: 104 cm or 112 cm
• Pressure/tip force (shares): adjustable from 100 kg to 250 kg
• Frame: split in the center and pivoted to the 3-point hitch structure
• Depth wheels: large-diameter wheels to adapt to ground undulations
• Available manual folding-frame version (Model ACIP 11VP)
• Optional flexible arms on the rear crossbar to split each soil ridge
• Suitable for soils with high levels of crop residues and for operations at sustained speeds
