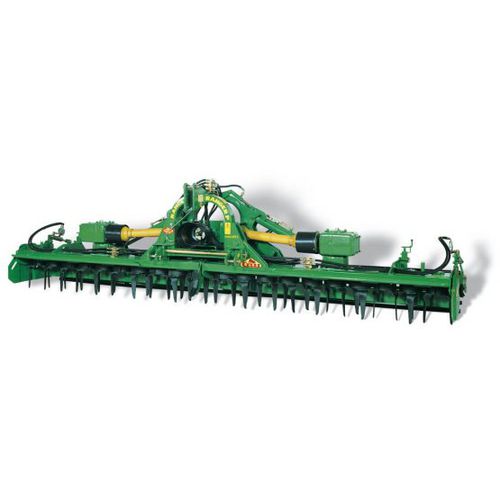

Power harrow RANGER P

with rollerfolding

The latest version of this machine, successfully tested under harsh working conditions, has the following characteristics: 1. - A central hitch: simplified and optimized to guarantee easy access to mechanical parts without renouncing robustness; 2. - The central hitch connecting arms - side units, which are now more robust due to being directly welded onto the machine body. This means that separating side machines from the central body for any repairs is also much easier and faster; 3. - The box frames in thick sheet métal are further reinforced for greater rigidity during operation; 4. - The availability of a basic version with 1 speed side gearboxes at a very compétitive price; 5. - The new rear leveling bars that are more robust and easier to adjust. The quality-price ratio of this model is particularly favorable and places it at the top of its market segment. Technical spécifications and standard equipment • - maximum horsepower: 210 HP (154 KW) PTO: 1000 rpm 1 speed: 392 rpm • - Cat. 2 3-point hitch • - swinging front hitches • - roller adjustment with pins • - rear leveling bar adjustment with threaded bar • - tines 90x12x285 mm: working depth about 28 cm • - mobile side plates • - side drive shafts with shear boit • - Central drive shaft S.8 L=761 mm tractor side 1 "3/8 Z=21 • - rear lights for road transport • - removable safety devices
