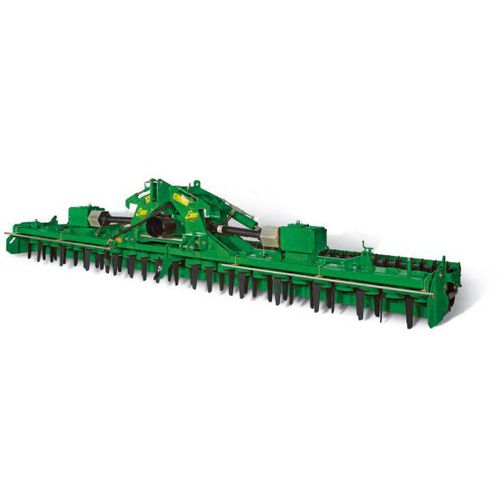

Power harrow ENERGY P

with roller

The main features are: • - The oil seal System with double seals with external labyrinth • - The simple, reliable and highly effective tine quick release System (on request) drastically reduces maintenance times; • - The pressed Steel lower supports are durable over time even in most difficult working conditions; • - The effective stone protector System (on request) safeguards the rotors, limiting wear and preventing them from locking during operation; • - The machine provides reduced dimensions with a center of gravity close to the tractor. • - The reinforced and rigid structure of the central hitch ensure greater torsional rigidity in extreme situations. • - The machine closing mechanism equipped with strong jacks, also includes mechanical manual locking with safety hooks. Technical spécifications and standard equipment • - maximum horsepower: 260 HP (192 KW) • - PTO: 2-speed gearbox for 1000 rpm, number of teeth: 17-22 = 357 rpm; 18-21 = 396 rpm • - Cat. 3 3-point hitch • - swinging front hitches • - roller adjustment with pins • - rear leveling bar adjustment with threaded bar • - tines 120x15x300 mm: working depth about 30 cm • - mobile side plates • - side drive shafts with automatic safety device
