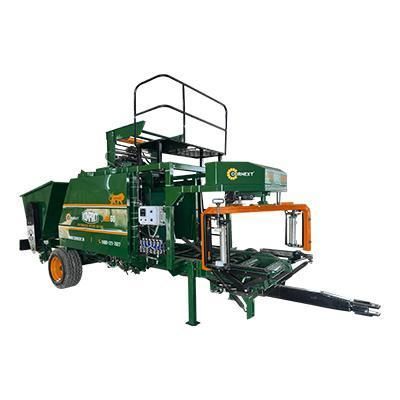

Round baler Kompakt ASB100

largesilagewith bale wrapper

Description The Cornext Kompakt ASB100 is a fully automated, high-capacity silage baling system engineered for commercial fodder production. Tailored for large dairy farms, integrated feed operations and industrial fodder enterprises, it provides consistent bale quality, programmable control and high throughput via PLC-based automation and a robust hydraulic drive.

Key Features

• High-speed bale output: Up to 60 bales per hour to maximise throughput and reduce manual handling.
• Programmable dual wrapping: Two-stage wrapping (internal and external) with UV-protected polyethylene or polypropylene film options (15 µ and 25 µ); number of layers programmable.
• Smart digital control panel: 12V DC alphanumeric controller with programmable settings for bale count, wrapping layers and target weight (100 kg). Optional manual override for field use.
• Elevated operator platform: Improved visibility and safe monitoring of machine operation.
• Material handling system: Large-capacity hopper and chain-driven conveyor ensure continuous feed to the compression chamber.

Bale & Machine Specifications

• Bale size: Height 522 mm x Diameter 504 mm
• Bale weight: Adjustable 90–115 kg depending on forage type and compaction
• Wrapping film width: 520 mm (internal), 250 mm (external)
• Machine dimensions: 6200 mm (L) x 2150 mm (W) x 2700 mm (H)
• Total weight: 3200 kg
• Power source: Tractor PTO (min 35 BHP @ 540 RPM) OR 20 Hp electric motor, 3-phase, 1440 rpm, 415 V
• Controller power supply: 12V alternator (DC)
• Transport arrangement: Towing hooks for field mobility

Hydraulic System

• Hydraulic pump capacity: 16 L (single pump)
• Hydraulic motor: Dedicated motor for external wrapping
• Hydraulic distributor: Seven double-acting 12V distributors
• Oil tank capacity: 40 L

Product specifications (table) Output — 100kg bales (±10 kg based on moisture, quality and material type)
Compaction rate — 945 to 995 kg/m3
Operating system — Hydraulic pump and motor integrated with PLC-based automation
Recommended power sources — Tractor PTO (35 HP min) OR 20 Hp electric motor, 3-phase, 1440 rpm, 415 V
Machine weight (dry) — 3200 kg

Built for Scale The Kompakt ASB100 is engineered for business-scale silage production: higher yields, consistent forage density and reduced labour costs through automation.

Technical specifications

• Model: Kompakt ASB100
• Intended output: 100 kg bales (±10 kg)
• Throughput: up to 60 bales/hour
• Compaction density: 945–995 kg/m³
• Bale dimensions: H 522 mm x Ø 504 mm
• Bale weight range: 90–115 kg (adjustable)
• Wrapping stages: two-stage (internal & external), UV-protected film options (15 µ & 25 µ)
• Wrapping film widths: 520 mm (internal), 250 mm (external)
• Hopper capacity: 600 kg (approx. 6–7 bales per load)
• Conveyor capacity: 125 kg/min (chain-driven)
• Operating system: Hydraulic pump & motor with PLC-based automation
• Recommended power: Tractor PTO (35 BHP @ 540 RPM) or 20 Hp electric motor, 3-phase, 1440 rpm, 415 V
• Hydraulic pump capacity: 16 L (single pump)
• Hydraulic distribution: 7 double-action 12V distributors; dedicated hydraulic motor for external wrapping
• Oil tank capacity: 40 L
• Machine dimensions (L×W×H): 6200 × 2150 × 2700 mm
• Machine weight (dry/total): 3200 kg
• Controller supply: 12V alternator (DC)
• Transport: towing hooks for field mobility
