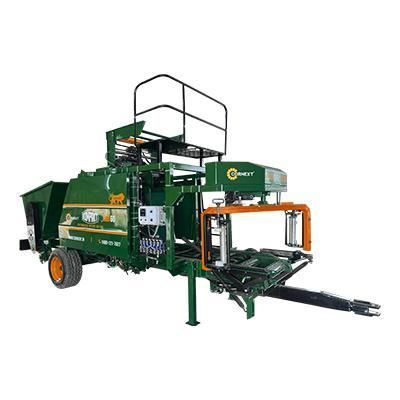

Round baler Kompakt ASB100

cylindricalvariable chambersilage

Product overview: The Kompakt ASB100 is an automatic silage baler engineered for commercial fodder production. It integrates PLC-based automation with a hydraulic drive to deliver consistent 100 kg bales for large dairy farms, feed processors and commercial fodder suppliers.

Key features:

• High output: Up to 60 bales per hour depending on crop and operating conditions.
• Programmable dual-stage wrapping: Internal and external wrapping units accepting 520 mm and 250 mm film widths; programmable number of layers; compatible with 15 µ and 25 µ UV-protected films.
• PLC digital control: 12V DC alphanumeric controller with programmable bale count, wrap layers and weight; optional manual field controls.
• Material handling: 600 kg hopper with chain-driven conveyor (125 kg/min) for continuous feed flow.
• Operator ergonomics: Elevated platform for safe visibility and monitoring; towing hooks for field transport.

Technical parameters:

• Bale nominal weight: 100 kg (±10 kg depending on moisture and material)
• Compaction density: 945–995 kg/m³
• Bale size: Height 522 mm × Diameter 504 mm
• Bale weight range: Adjustable 90–115 kg
• Wrapping film widths: 520 mm (internal) / 250 mm (external)
• Output per hour: Up to 60 bales/h
• Hopper capacity: 600 kg (approx. 6–7 bales per load)
• Conveyor capacity: 125 kg/min (chain-driven)

Machine specifications:

• Dimensions (L×W×H): 6200 × 2150 × 2700 mm
• Dry weight: 3200 kg
• Power options: Tractor PTO (35 BHP @ 540 RPM) or 20 Hp electric motor, 3-phase, 1440 rpm, 415 V
• Controller supply: 12V alternator (DC)
• Transport: Towing hooks for field movement

Hydraulic system:

• Hydraulic pump capacity: 16 L (single pump)
• Hydraulic motor: Dedicated motor for external wrapping
• Hydraulic distributor: 7 double-action 12V distributors
• Oil tank capacity: 40 L

Operation & handling:

• Compression chamber: Automatic pressure control to maintain consistent compaction density
• Elevated operator platform: Improved visibility for safe operation and monitoring
• Material flow: Continuous feeding via hopper and chain conveyor to ensure steady bale formation
• Field adaptability: Optional manual controls and towing arrangement for on-field transport

Applications: Designed for large-scale dairy farms, integrated feed units and commercial silage producers requiring automated, repeatable bale production across regional operations.

Model & manufacturer:

• Model: Kompakt ASB100
• Manufacturer / Brand: Cornext
