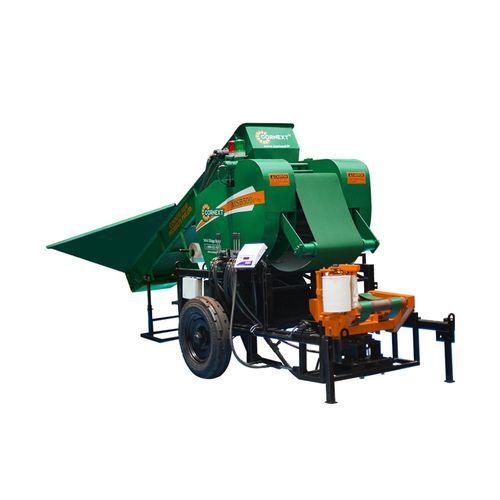

Square baler MSB500-AT-Pro

silagewith bale wrappersmall

Overview: India’s first indigenous mini silage baler, the Cornext MSB500-AT-PRO, is designed for medium-sized dairy farms and rural entrepreneurs to enable reliable, year-round silage production. Compact and mobile, it has proven performance across 20+ Indian states and international deployments, delivering consistent bale quality for feed management and commercial sale.

Key Features:

• Bale output: uniform bales weighing 50–70 kg for easy handling and storage.
• High productivity: daily capacity of 15–20 metric tonnes suitable for commercial and cooperative operations.
• Efficient wrapping: two-stage protective wrapping system for improved compaction and storage protection.
• Powerful compaction: compaction rate of 650–675 kg/m3 to preserve feed value and extend shelf life.
• Versatile forage handling: suitable for maize, bajra, TMR and other chopped forages.
• User-friendly controls: intuitive 5-lever hydraulic control for simple operation and reduced training time.
• Flexible power input: operates on a 5 HP electric motor (3-phase) or generator for field adaptability.

Design & Mobility:

• Compact bale size: 500 mm × 500 mm for efficient transport, stacking and sale.
• High-capacity hopper: 300–400 kg hopper supports continuous feeding and reduces downtime.
• Durable wheel system: two pneumatic wheels for load capacity and movement on uneven terrain.
• Easy hitch & transport: single-point towing-type hitch for field mobility and transport.
• Optimized dimensions: 6000 mm (L) × 1660 mm (W) × 2160 mm (H) balancing power and portability.

Smart Functional Add-ons:

• Automatic pressure control to maintain optimal compaction through the baling cycle.
• Wrapping indicator to alert the operator when wrapping is complete.
• Automatic bale ejection for uninterrupted workflow.
• Bale weighment system to record bale weight for consistency and commercial tracking.

Service & Support: Cornext provides full lifecycle support including installation, operator training, silage-making guidance and business mentorship, with 24×7 customer support and access to spare parts and maintenance services to ensure continuous operation.

Technical Parameters:
Output: 50–70 kg bales
Compaction rate: 650–675 kg/m3
Operating system: hydraulic pump and motors
Recommended power: 5 HP electric motor, 3-phase, 410 V, 1440 rpm
Machine weight (dry): 1500 kg

Specifications:

• Model: MSB500-AT-Pro
• Bale weight: 50–70 kg
• Bale dimensions: 500 mm × 500 mm
• Compaction rate: 650–675 kg/m3
• Daily output: 15–20 metric tonnes
• Hopper capacity: 300–400 kg
• Recommended power: 5 HP electric motor, 3-phase, 410 V, 1440 rpm
• Operating system: hydraulic pump and motors
• Machine weight (dry): 1500 kg
• Dimensions (L × W × H): 6000 mm × 1660 mm × 2160 mm
• Mobility: two pneumatic wheels, single-point hitch (towing-type)
