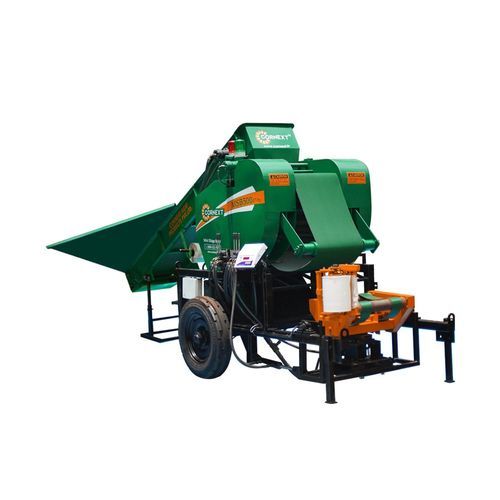

Square baler MSB500-AT-Pro

rectangularsilagesmall

Description
The Cornext MSB500-AT-PRO is a compact mini silage baler designed for medium-sized dairy farms, cooperatives and rural entrepreneurs. It produces consistent, transportable bales to enable local, year‑round silage production and commercial sale.

Key Features

• Bale output: uniform bales weighing 50–70 kg for easy handling and efficient storage.
• High productivity: daily throughput of 15–20 metric tonnes, suitable for small commercial operations and cooperatives.
• 2-stage protective wrapping system to improve compaction and preserve bale quality in storage and transit.
• Compaction rate above 650 kg/m³ to help maintain forage nutritional value and extend shelf life.
• Compatible with maize, bajra, TMR and other chopped green forages.
• Operator-friendly 5-lever hydraulic control for straightforward operation.
• Flexible power: runs on a 5 HP electric motor (3-phase) or compatible generator for field use.

Design & Mobility

• Compact bale size: produces 500 mm × 500 mm bales for stacking, transport and sale.
• High-capacity hopper: 300–400 kg hopper for continuous feeding and reduced downtime.
• Durable pneumatic wheel system for high load capacity and smooth movement on uneven terrain.
• Single-point hitch and towing setup for simple field transport.
• Machine dimensions optimized for field use: 6000 mm (L) × 1660 mm (W) × 2160 mm (H).

Smart Functional Add-ons

• Automatic pressure control to maintain consistent compaction throughout the cycle.
• Wrapping indicator to notify the operator when wrapping is complete.
• Automatic bale ejection to ensure continuous workflow.
• Bale weighment system to monitor weight consistency for commercial sale.

Product Details (table)
Parameter — Specification
Output — 50–70 kg bales
Compaction Rate — 650–675 kg/m3
Operating System — Hydraulic pump and motors
Recommended power sources — 5 HP electric motor, 3-phase, 410 V, 1440 rpm
Machine weight (dry) — 1500 kg

Technical specifications

• Model: MSB500-AT-PRO
• Bale weight: 50–70 kg
• Bale dimensions: 500 mm × 500 mm
• Daily throughput: 15–20 metric tonnes
• Compaction rate: 650–675 kg/m³ (nominal >650 kg/m³)
• Wrapping: 2-stage protective wrapping system
• Operating system: Hydraulic pump and motors; 5-lever hydraulic control
• Recommended power: 5 HP electric motor, 3-phase, 410 V, 1440 rpm (or generator)
• Hopper capacity: 300–400 kg
• Machine weight (dry): 1500 kg
• Mobility: two pneumatic wheels; single-point hitch/towing setup
• Dimensions (L×W×H): 6000 mm × 1660 mm × 2160 mm
• Optional/standard add-ons: automatic pressure control, wrapping indicator, automatic bale ejection, bale weighment system
