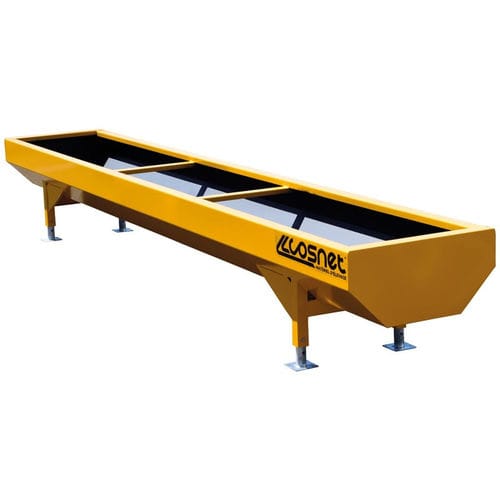

Cattle trough 1120105

steelinteriorexterior

Feed trough, interior bituminous coating. High-quality coating. New : Polyurethane outter paint. Available in the following widths: 0.60 and 0.80 m. Highly appreciated for its quality, robustness, and durability. - Manufactured from 2 mm sheet steel bent in a single length for greater rigidity, - Angles are notched allowing the ends to be superimposed with a weld bead for more solidity, - Anti-rust protection on the entire trough, - Polyurethane paint applied on exterior pan, - Bituminous coating applied on interior pan, - Very deep trough, Reinforced painted feed troughs are fitted with: - 2 reinforcing cross bars inside the feed trough, - 4 welded feed linked by cross bars under the feed trough pan up to 5 m and 6 feet for 6 m, - Anti-spillage rim’s width of : • 75 mm for any troughs width from 0.80 to 1.50 m • 55 mm for troughs width 0.60 m - Ø 50 mm galvanised legs for any troughs width from 0.80 to 1.50 m and Ø 42.4 for any troughs width 0.60 m. Adjustable in height in groups of 7 cm by a through bolt to adjust the height or tilt the trough to limit waste, - 4 reinforcing triangular armpits between the foot and the pan to increase overall stability and solidity - 1 PVC threaded drain through wall plug (Ø 45 mm). They are designed silage and feed for cattle.
