Hydraulic hedge trimmer Galax MD100

mountedlightweightfor green spaces

Short description
The Galax MD100 is a compact front-mounted hedge trimmer designed for professionals requiring precision cutting in confined spaces while remaining compatible with small carriers.

Overview

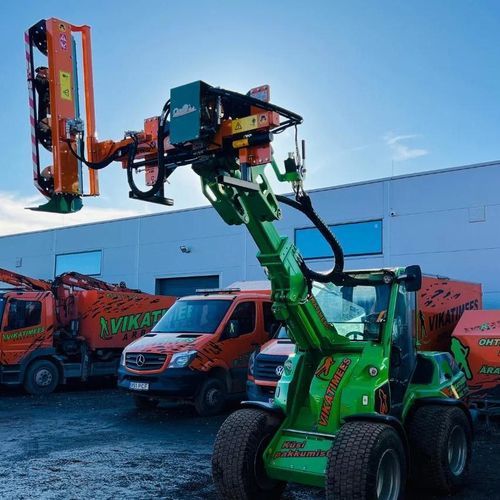

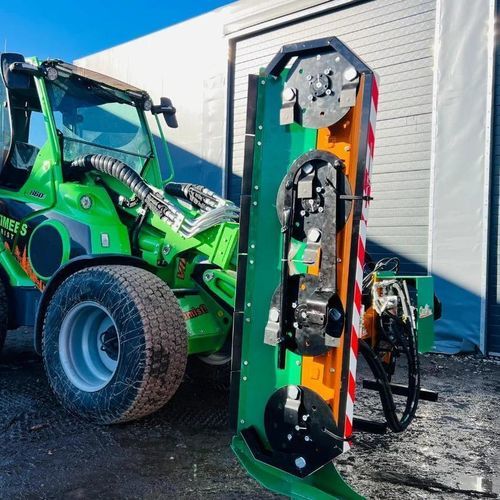

The Galax MD100 mounts on the front of micro-tractors, compact loaders and front loaders to provide full visibility and precise straight-line trimming. It supports two cutting configurations: knife plates for branch diameters up to 25 mm and a saw blade for cuts up to 70 mm. Operating parameters are 30 l/min hydraulic flow at 170 bar and a rotation speed of 3500 RPM. The unit includes a hydraulic offset stroke of 700 mm and an adjustable vertical offset from 1.10 m to 1.80 m relative to the carrier center axis.

Adapted supports

• Front loader
• Compact loader
• Micro-tractor

Key features and highlights

• Compact front-mounted hedge trimmer for improved visibility
• Dual cutting modes: knife plates (≤25 mm) or saw blade (≤70 mm)
• Compatible with small loaders and micro-tractors
• Trimming remains within carrier width profile
• Hydraulic offset stroke: 700 mm
• Adjustable vertical offset: 1.10 m–1.80 m from carrier center axis
• Hydraulic requirement: 30 l/min at 170 bar
• Rotation speed: 3500 RPM
• Designed for simplified maintenance: proportional greasing and routine blade sharpening
• Optional kits: anti-debris kit, protective grille, Makrolon shield depending on configuration

Model variants (table)
Model - Galax MD100 - Galax MD100
Pruner - 3420 - 4420
Number of blades/trays - 3 - 4
Diameter (mm) - 420 - 420
Cutting capacity (mm) - Platters - 25 - 25
Cutting capacity (mm) - Saw blade - 70 - 70
Cutting length (m) - 1,14 - 1,50
Rotation speed (RPM) - 3500 - 3500
Machine weight (kg) - 140 - 165

Use cases
Suitable for municipalities, local authorities and professionals maintaining hedges along roadsides, residential areas and parks. Its compact, lightweight design reduces ground pressure and is suitable for frequent use on small carriers.

Technical specifications

• Commercial name: Galax MD100
• Cutting systems: knife plates (up to 25 mm) or saw blade (up to 70 mm)
• Cutting diameter: 420 mm
• Number of blades/trays: 3 (3420) / 4 (4420)
• Cutting length: 1.14 m (3420) / 1.50 m (4420)
• Rotation speed: 3500 RPM
• Hydraulic flow requirement: 30 l/min
• Hydraulic pressure reference: 170 bar
• Hydraulic offset stroke: 700 mm
• Adjustable vertical offset: 1.10 m to 1.80 m from carrier center axis
• Machine weight: 140 kg (3420) / 165 kg (4420)
• Cutting capacity (platters): 25 mm
• Cutting capacity (saw blade): 70 mm
