Arboriculture pruning machine

for orchardsfor treesfor hedges

Short description

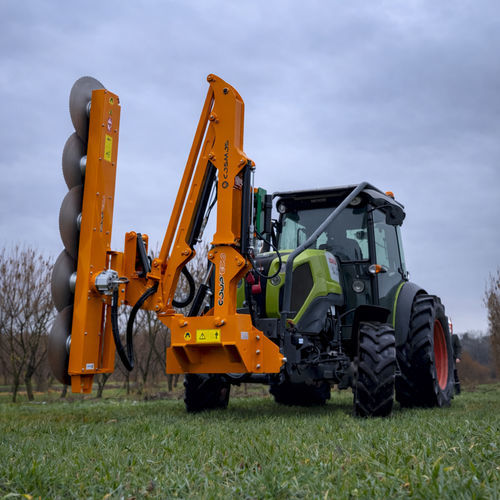

The Cosmos 104T is the top-range telescopic orchard pruner designed for tall orchards and dense fruit hedges. It combines a telescopic arm, autonomous hydraulic power unit and interchangeable cutting heads to adapt to seasonal work and varied field conditions.

Highlights

• Vertical reach: up to 8.60 m (value mentioned in product sheet) and up to 7 m in the specification table
• Saw cutting reported up to Ø600 mm in some communications (spec table lists up to 180 mm for saw, 40 mm for flails)
• Robust telescopic arm for intensive agricultural use
• Integrated autonomous hydraulic power unit (no specific tractor flow required)
• Interchangeable heads: saw (4 or 5 discs), flails, pruning shears
• Ergonomic control options: joystick or 2-speed electric gearbox
• Hydraulic head rotation and parallelogram linkage for stable, precise positioning
• Front tractor mounting; compatible with tractors from 4 tonnes upwards
• Side guards, flail trays for low hedges and branch evacuator available

Range / Adapted supports
Range: Cosmos
Adapted supports: Front-mounted on tractor (compatible with tractors from 4 tonnes upwards).

Detailed description
Built for professional orchardists and agricultural contractors, the Cosmos 104T delivers versatility and productivity for pruning tall trees, dense fruit hedges and roadside maintenance. The telescopic arm reduces repositioning time while maintaining cutting quality. It can be fitted with a saw lamier accepting large-diameter discs, with flail trays for finer hedge trimming or with pruning shears for precise cuts. The autonomous hydraulic unit enables operation independently of the tractor hydraulic flow. Operator interfaces include an ergonomic joystick or a two-speed electric gearbox. The parallelogram system keeps the cutting head in plane for precise, repeatable cuts.

Specification table
Model: Cosmos 104T
Vertical reach: Up to 7 m (spec table) — up to 8.60 m (value mentioned in product sheet)
Horizontal reach: Up to 4 m
Cutting diameter: Up to 180 mm (saw), 40 mm (flails) — some communications mention up to 600 mm with specific saw heads
Type of arm: Telescopic
Tractor mounting: Front
Minimum tractor weight: 4 tonnes
Control: 2-speed electric gearbox or joystick
Hydraulics: Integrated autonomous power unit
Available heads: Saw (4 or 5 discs), flails, pruning shears

Technical specifications

• Model name: Cosmos 104T
• Vertical reach: Up to 8.60 m (value mentioned) / Up to 7 m (spec table)
• Horizontal reach: Up to 4 m
• Cutting options: Saw (multiple disc configurations), flails, pruning shears
• Reported cutting diameters: communications list up to Ø600 mm; specification lists up to 180 mm (saw) and 40 mm (flails); FAQ examples: 150 mm with Ø500 saw / 180 mm with Ø600 saw
• Arm type: Telescopic
• Mounting: Front tractor mounting
• Compatibility: Compatible with tractors from 4 tonnes upwards
• Hydraulics: Integrated autonomous hydraulic power unit
• Controls: 2-speed electric gearbox or ergonomic joystick
• Head movement: Hydraulic rotation with parallelogram for precise positioning
• Accessories: Side guards, flail trays for low hedges, branch evacuator
• Available saw heads: 4 or 5 disc configurations
