Hydraulic hedge trimmer Galax H40

mountedfor green spaceseasy-to-use

Short description

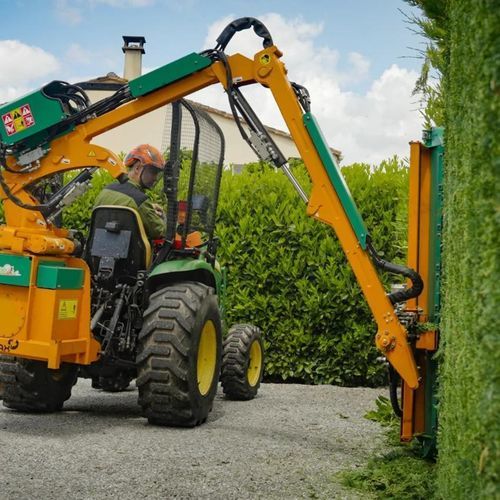

The Galax H40 is a next-generation hedge trimmer designed for professional maintenance teams and compatible with micro-tractors for green-space work. Its compact, all-in-one design facilitates finishing and regular trimming in confined urban and rural locations.

Range
Galax range (synchronised aluminium cutter bar, compact mechano-welded chassis-reservoir for balance and rigidity).

Adapted supports

• Micro-tractor

Main advantages
The Galax H40 delivers straight-line cutting accuracy via a synchronised aluminium cutter bar. A double electronic parallelogram maintains the cutter bar in the same cutting plane. Ergonomic control panel and optional proportional joystick enable precise handling. The unit is driven by a self-contained hydraulic motor using Panolin biodegradable oil, reducing maintenance needs. Compact arms and full lateral offset allow work close to hedges and in narrow passages; 180° rotation increases accessibility.

Key features (bulleted)

• Straight-line hedge trimming close to manual finish
• Self-contained hydraulic system (no tractor hydraulic connection required)
• Double electronic parallelogram to keep the cutter bar in the same cutting plane
• Proportional joystick for precise, intuitive control
• Option to fit saw cutter bars or flail heads
• Compact arms for confined-space work
• Full lateral offset for trimming close to hedges
• Simplified maintenance and durable components
• 180° rotation
• Panolin biodegradable oil (no regular oil changes required)

Technical table (comparison with Galax RH40)
Model | Galax H40 | Galax RH40
Pruner | 4420 5420 | 5420
Number of blades/trays | 4 5 | 5
Diameter (mm) | 420 | 420
Cutting height (m) - Horizontal | 4 | 5
Cutting height (m) - Vertical | 5,5 5,85 | 6,85
Cutting capacity (mm) - Platters | 25 | 25
Cutting capacity (mm) - Saw blade | 70 | 70
Cutting length (m) | 1,5 1,83 | 1,83
Rotation speed (RPM) | 3400 | 3400
Machine weight (kg) | 570 590 | 610

Usage and target users
Intended for maintenance crews, gardeners, landscapers and municipal services performing hedge work on roadsides, parks and residential areas. Recommended for finishing and regular maintenance where precision and manoeuvrability are required, including narrow passages.

Optional equipment and notes
Pruning shear can be supplied as original equipment. Anti-debris kit reduces projections; depending on tractor configuration, a protective grille or Makrolon shield may be required. Mulching kit available as an option.

Technical specifications

• Model: Galax H40
• Pruner options: 4420, 5420
• Number of blades/trays: 4 or 5
• Disc diameter: 420 mm
• Cutting length: 1.5 m (standard) or 1.83 m (option)
• Cutting heights: horizontal up to 4 m (H40); vertical up to 5.5 / 5.85 m (H40) — RH40 variants higher
• Cutting capacity (platters): 25 mm
• Cutting capacity (saw blade): 70 mm
• Rotation speed: 3400 RPM
• Machine weight: approx. 570–590 kg depending on configuration
• Drive: self-contained hydraulic motor using Panolin biodegradable oil
• Control: optional proportional joystick for precise operation
