Construction telehandler PEGASUS ESSENTIAL 50.18

Overview
The Essential line includes the Pegasus 400° non-continuous rotation telehandlers. Developed for users who need an essential, reliable and easy-to-use rotating telehandler, the PEGASUS ESSENTIAL family balances low operating costs, high efficiency and comprehensive safety in varied jobsite conditions. With a wide range of attachments and equipment, a single vehicle can perform as a telehandler, aerial platform and crane.

Benefits

• ALL IN ONE VEHICLE: The wide range of available equipment enables DIECI rotating telehandlers to handle all essential tasks on a construction site.
  • Better than a telehandler: turret rotation provides up to 360° operational coverage, significantly increasing working range compared with a conventional telehandler.
  • Better than a boom lift: superior stability and positioning accuracy, even at extreme heights.
  • Better than a crane: safe travel and lifting operations on wheels or on outriggers, on level ground and off-road.
• EASY WORK SYSTEM: Automatic adjustment to the working area based on outrigger foot position. In case of overload the system blocks unsafe movements. Load chart visible on the in-cab display for operator guidance.
• AUTOMATIC SAFETY: Anti-Crash system to limit boom and vehicle working envelope. Stabilization self-levelling activated by a single button on any terrain. Anti-Tilt system halts aggravating movements to maximize operator and site safety.
• COMFORT AND VISIBILITY: Capacitive-sensor joystick; large glazed area; LED worklights and camera systems for enhanced monitoring; radio remote control for load handling and man-basket operations.
• ADVANCED CONTROL: Automatic equipment recognition (no manual setup), preselected load charts for simplified operation and enhanced safety. Radio control with display enables remote management of all vehicle functions.
• FLAP DOWN OUTRIGGERS: Specially designed outriggers simplify deployment and reduce stabilization time.
• DIECI TELEMATICS SYSTEM (DTS): Remote interaction to monitor operating parameters, measure performance and control usage. Cloud-collected operational data supports maintenance scheduling, cost optimization and fleet efficiency. Geolocation protects vehicle and operators from theft.

Gallery / Visuals

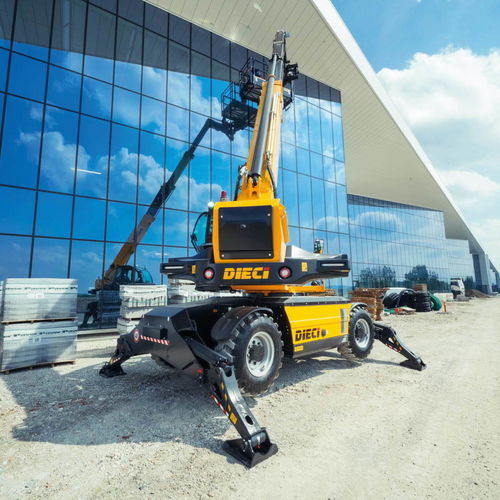

Product images and a gallery show the PEGASUS ESSENTIAL family and the 50.18 model in multiple configurations and working conditions.

Characteristics / Technical specifications

• Model family: PEGASUS ESSENTIAL
• Model: 50.18
• Maximum capacity (max flow rate): 4,999 kg
• Maximum lifting height: 18 m
• Maximum power: 85.9 kW (115 HP)
• Engine brand: Perkins
• Engine displacement: 3,621 cm3
• Fuel type: Diesel
• Emission standard: Stage V / Tier 4f
• Hydraulic pump capacity: 120 l/min
• Maximum operating pressure (hydraulics): 27 MPa
• Transmission type: Hydrostatic with variable displacement pump
• Standard tires: 400/70x20 (alternatives: 405/70-20; 16/70-20)
• Unladen weight: 14,700 kg
• Maximum speed: 30 km/h
• Maximum height on outriggers: 18 m
• Maximum height on wheels: 15.7 m
• Pull-out force: 5,700 daN
• Towing force: 6,500 daN
• Dimensions: Ground clearance: 310 mm; Maximum length: 6,630 mm; Cab height: 3,030 mm; Tire width: 2,380 mm; Turning radius (wheel): 4,430 mm
