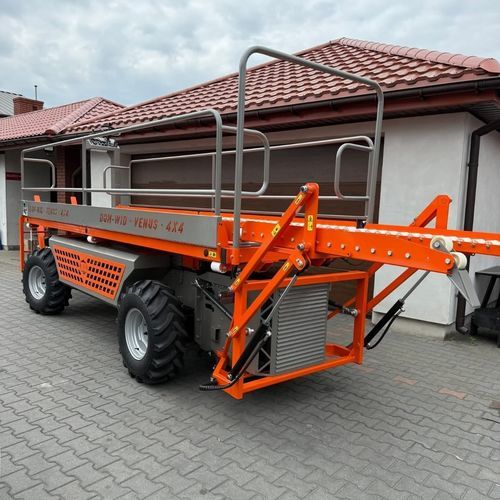

Harvesting aerial platform WENUS

pruningself-propelledorchard

The WENUS harvesting platform for fruit growing is a self-propelled working platform that can be operated independently of a tractor. Thanks to its hydrostatic 4×4 drive, it offers excellent mobility and enables safe and efficient work in orchards.

The platform is ideal for pruning fruit trees, thinning blossoms and fruit, and harvesting fruit from higher tree canopies. Its compact design and four-wheel steering system allow it to maneuver easily even in narrow orchard rows.

Technical Data
Platform length: 5.1 m (without forks)
Transport width: 1.6 m
Working height: 1.3–2.3 m
Engine power: 35 HP
Driving speed: Up to 20 km/h
Total weight: 3.5 t
Tyres: Wide tyres, 290 mm × 11.5 mm
Equipment and Features
Hydrostatic Poclain 4×4 drive with a separate wheel motor on each wheel for maximum traction and excellent off-road capability.
Two steering axles (four-wheel steering) for exceptional maneuverability, even in narrow orchards.
Continuously variable speed control for smooth acceleration and precise operation.
Two hydraulic driving ranges for working and transport operations.
Traction control system for optimal grip and maximum driving stability, even on wet grass, muddy or uneven terrain.
Electro-hydraulic Poclain control system for precise and comfortable operation of all machine functions.
Standard Equipment
Hydraulically extendable working platforms at the front and rear, each extending by 0.5 m on each side.
